Product Name:Particle board production line.

Capacity available:5,000-100,000CBM PER YEAR/22.5HOURS PER DAY.

Including full sets of machines, after installation, can produce excellent particle boards.

Description of Machines

A.Chip preparation section





A1

belt conveyor

1SET

A2

Drum chipper BX218 video

1SET

A3

Belt conveyor with magnet

1SET

A4

Screw conveyor

1SET

A5

Crusher machine with cyclone unloading system video

2SETS

A6

Wood chips silo

1SET

A7

Loader of silo

1SET

A8

Belt conveyor with magnet

1SET

B.Drying section and sifting section





B1

Three-passager dryer machine

1SET

B2

Screw conveyor

1SET

B3

Belt conveyor

1SET

B4

Vibrating screen

1SET

B5

Double-stream mill

1SET

B6

Pipeline, blower, separator, feeder, silo,

screw conveyor, belt conveyor

1SET

C.Glue blending and sizing section





C1

Belt conveyor

2SET

C2

Glue blender for fine chips

1SET

C3

Glue blender for core chips

1SET

C4

Glue distribution & blending system

1SET

C5

Belt conveyors with magnet

3SETS

D.Forming and pressing section





D1

Diamond roller Mechanical forming machine

1SET

D2

De-dusting system for forming

1SET

D3

Multi roller press machine

1SET

D4

Trimming saw machine

1SET

D5

Belt conveyor for mat-boards

6SETS

D6

Cross saw machine

1SET

D7

Electronic scale

1SET

D8

Recycling device for bad mat-boards

1SET

D9

Pushing device for mat-boards

1SET

D10

Loader of hot press machine

1SET

D11

Particle board multi-layer hot press machine

(including hydraulic station and nitrogen pushing system)

1SET

D12

Unloader of hot press machine

1SET

E.After hot pressing section





E1

Overturning and cooling  machine

1SET

E2

Longitudinal saw machine

1SET

E3

Transverse saw machine

1SET

E4

Stacking machine

1SET

E5

De-dusting system for saw machine

1SET

F.Sanding section





F1

Hydraulic board lifter machine

1SET

F2

Inlet roller table

1SET

F3

2 heads sanding machine

1SET

F4

Roller table

1SET

F5

4 heads sanding machine

1SET

F6

Outlet roller table

1SET

F7

Stacking machine

1SET

F8

De-dusting system for sanding machine

1SET

F9

Electric control for sanding section

1SET

G.Additional equipment





G1

Electric control for main line

1SET

G2

Gas removal device of overturning machine

1SET

G3

Gas removal device of hot press machine

1SET

G4

Boiler machine for providing the heat for dryer

and hot press machine

1SET

G5

Glue making machines

1SET

G6

Some additional parts for machines’ installation and repairing.

1SET

[Full automatic particle board layout drawing]

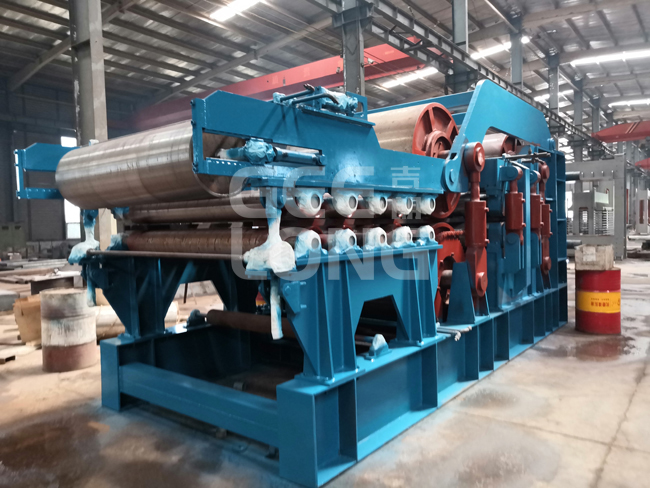

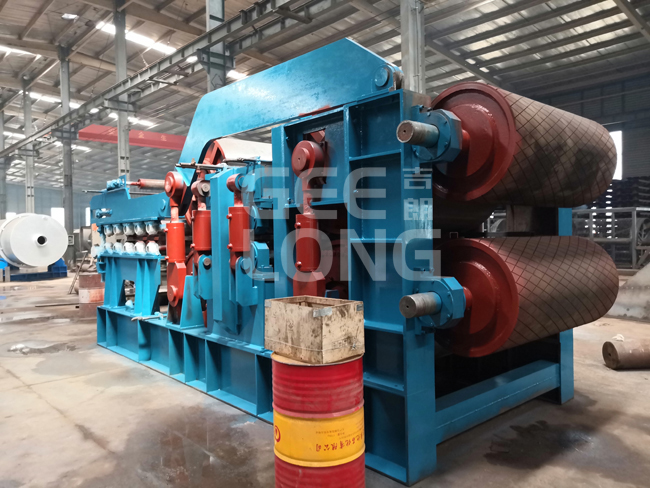

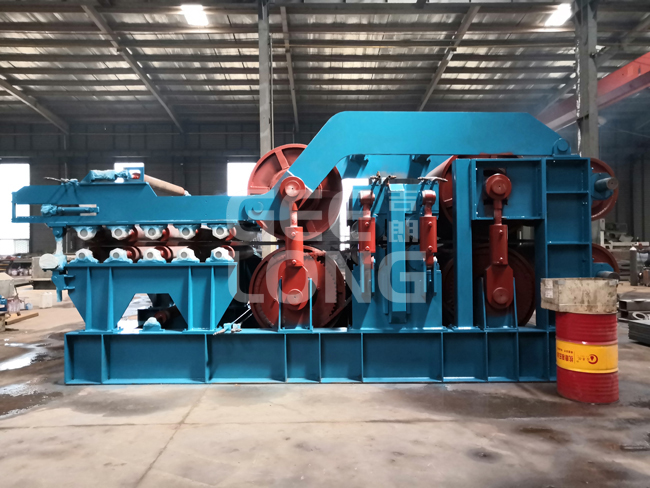

[New and heavy duty continuous prepresss machine for particle board line]

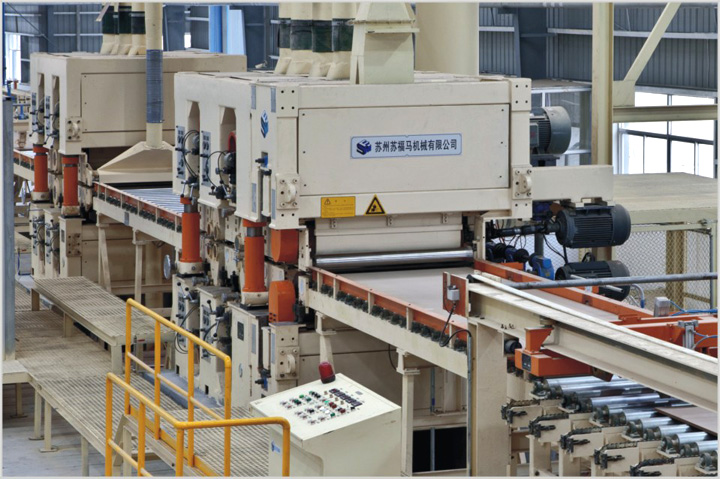

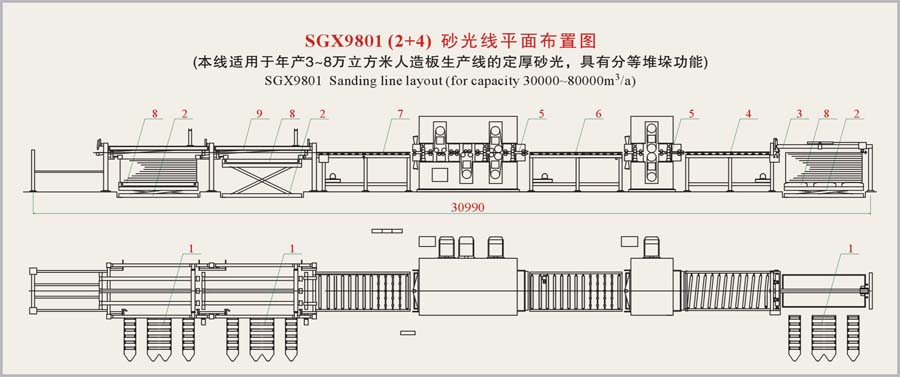

[Sufoma Sanding Line For Sanding Particle Board After This Line]

[Semi-Automatic Small Capacity 10,000-15,000 CBM PARTICLE BOARD PRODUCTION LINE]

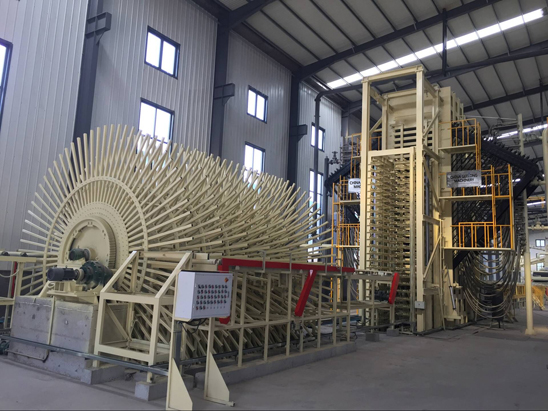

[Full-Automatic Big Capacity 30,000-100,000 CBM PARTICLE BOARD PRODUCTION LINE]

DOWNLOAD INTRODUCTION PROCESS OF PARTICLE BOARD LINE.
