Product Name:board lifter machine

Characteristic: geelong machinery has many models for board lifter machine

our board lifter machine can be applicable for plywood, funiture, veneer, logistics area...etc.

Description of Machines

1

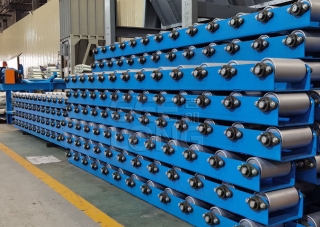

吉朗新型重型滚筒输送线
Geelong new model heavy duty roller conveyor
滚筒宽度roller width:350毫米mm
滚筒直径roller diameter:120毫米mm
滚筒壁厚roller thickness:大于>4毫米mm
滚筒框架工艺roller frame:激光切割 laser cutting
滚筒框架壁厚roller frame thickness:6毫米mm
两条线可以承载3000公斤
Two lines can take 3000kgs weight
颜色color:吉朗蓝 geelong blue

laser cutting plywood ground roller line

2

   3T普通升降台
设备名称: 3T hydraulic lift table (with foundation)
设备型号machine model type:GBL4*8
工作台尺寸working table side:1200*2400mm customized
最大承载重量 Max. Loading weight:3T customized
闭合高度 height when closing:560mm
油缸直径和个数 cylinder Dia. And Qty:Φ130mm*2sets
总功率 total power: 3kw
设备尺寸machine dimension:2400X1200X560mm
设备重量machine weight:800kg

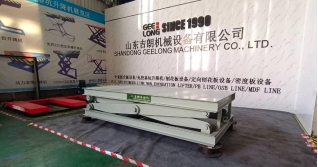

plywood board lifter normal type model

3

   3T高配升降台
设备名称: 3T hydraulic lift table (with foundation)
设备型号machine model type:GBLH4*8
工作台尺寸working table side:1200*2400mm customized
最大承载重量 Max. Loading weight:3T customized
剪刀板厚度 scissor steel plate thickness:40mm
闭合高度 height when closing:560mm
油缸直径和个数 cylinder Dia. And Qty:Φ145mm*2sets
总功率 total power: 3kw
设备尺寸machine dimension:2400X1200X560mm
设备重量machine weight:1000kg

heavy duty plywood board lifter machine

4

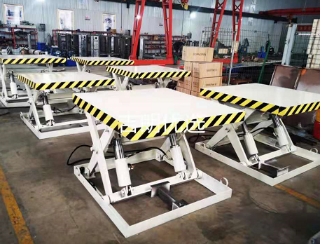

   3T免挖基坑升降台
设备名称: 3T hydraulic lift table (without foundation)
设备型号machine model type:GBL4*8
工作台尺寸working table side:1200*2400mm customized
最大承载重量 Max. Loading weight:3T customized
闭合高度 height when closing:250mm
油缸直径和个数 cylinder Dia. And Qty:Φ130mm*2sets
总功率 total power: 3kw
设备尺寸machine dimension:2400X1200X250mm
设备重量machine weight:800kg

   non foundation platform hydraulic lifter

5

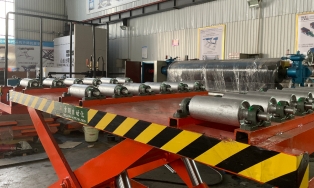

3T hydraulic lift table (without foundation) with powered roller on the top
Machine model type:GBL4*8
Working table side:1250*2500mm customized
Max. Loading weight:3T customized
Height when closing:250mm
Cylinder Dia. And Qty:Φ130mm*2sets
Lifting height: 1200mm net
Total power: 3kw
Machine dimension:2500X1250X400mm
Machine weight:1000kg

powered roller type hydraulic lifter machine

6

  3T免挖基坑升降台带链条输送

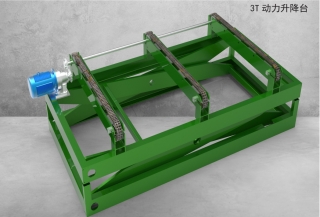

设备名称: 3T hydraulic lift table with chain conveying system
设备型号machine model type:GBLC4*8
工作台尺寸working table side:1200*2400mm customized
最大承载重量 Max. Loading weight:3T customized
闭合高度 height when closing:550mm
油缸直径和个数 cylinder Dia. And Qty:Φ130mm*2sets
总功率 total power: 3kw+0.75-1.5KW
设备尺寸machine dimension:2400X1200X550mm
设备重量machine weight:1500kg

powered chain plywood conveyor

7

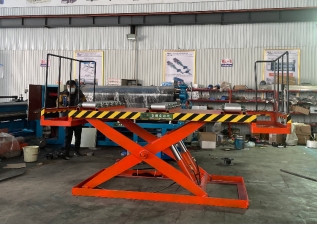

   3T免挖基坑升降台两边站人
设备名称: 3T hydraulic lift table (without foundation) with worker standing station
设备型号machine model type:GBLMTSR4*8
工作台尺寸working table side:1200*2400mm customized
最大承载重量 Max. Loading weight:3T customized
闭合高度 height when closing:250mm
油缸直径和个数 cylinder Dia. And Qty:Φ130mm*2sets
滚筒直径 roller diameter: 108mm
滚筒壁厚 roller wall thickness: 4-6mm
滚筒动力 roller motivation: without
总功率 total power: 3kw
设备尺寸machine dimension:3600X1200X250-300mm
设备重量machine weight:1500kg

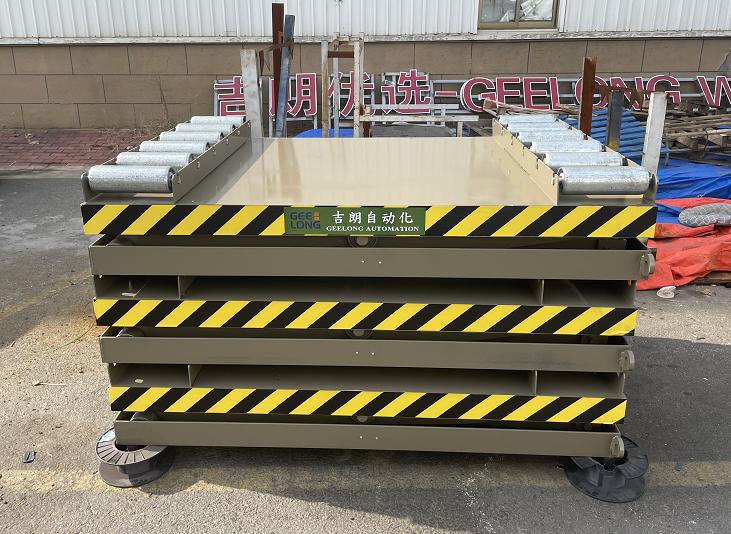

board lifter machine with worker standby before and after plywood hot press machine
board lifter machine with unpowered roller

8

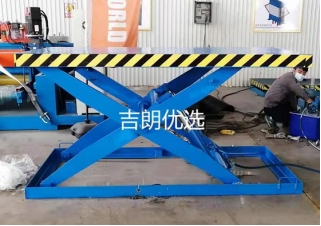

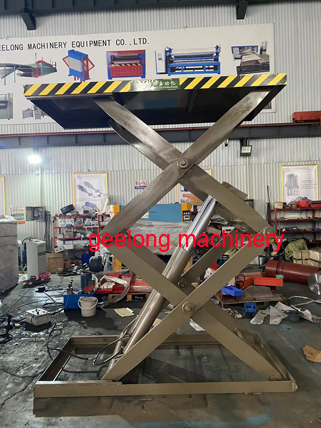

3T双层提升升降机
设备名称: 3T hydraulic lift table (with foundation)
设备型号machine model type:GBDLH4*8
工作台尺寸working table side:1200*2400mm customized
最大承载重量 Max. Loading weight:3T customized
剪刀板厚度 scissor steel plate thickness:35mm
闭合高度 height when closing:400mm
油缸直径和个数 cylinder Dia. And Qty:Φ150mm*2sets
提升高度lifting height: 3500mm
总功率 total power: 5.5kw
控制方式controlling methods: foot switch
设备尺寸machine dimension:2400X1200X400mm
设备重量machine weight:2200kg

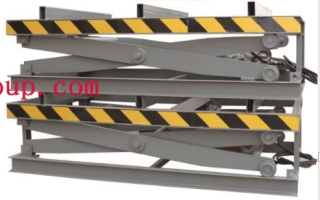

double layers lifting height 3500mm board lifter machine

9

4X4尺双层3吨免挖基坑升降机
4X4ft double layers 3tons non foundation lifter machine
工作台面working table:1300x1300毫米,工作平台尺寸可以定制 working table size can be customized
提升高度lifting height:1800毫米mm
闭合高度closing height:450毫米mm
电机功率motor power:3KW,380v,其他电压可以定制 other volts can be customized
提升重量lifting weight:3000公斤kgs
机械加电控行程保护 mechannical protection and distance protection switch
电机品牌motor brand:南京控制nanjing kongzhi
国家标准化电控箱,脚踏开关+按钮控制
National standard controlling cabinet, foot switch+buttons controlling
特殊要求可以升级为无线遥控控制
Special requirements can be upgraded to wireless remote control
机器总重:600公斤
Machine weight: 600kgs
包装方式:缠绕膜包装
Packing methods: Wrapping film

double layer board lifter machine for floor machine

10

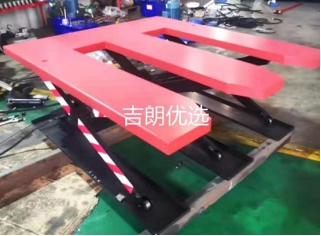

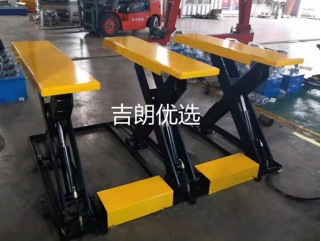

机器名称:E150-3吨免挖基坑升降机
Machine name: E150-3tons non foundation lifter machine
最大载重max. Lifting weight:3tons
提升高度到lifting height:1000毫米mm
主油缸 main cylinder: 3pcs
辅助油缸 support seat cylinder:3pcs
液压站功率hydraulic station:3KW
电机品牌motor brand:南京控制电机厂nanjing kongzhi或同样品牌电机
机械加电控行程保护
foot switch+buttons controlling
外形尺寸:1450x2000x150mm
Overall dimension

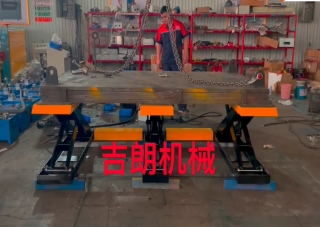

E type board lifter machine

11

机器名称:E130-3吨免挖基坑升降机
Machine name: E130-3tons non foundation lifter machine
最大载重max. Lifting weight:3tons
提升高度到lifting height:1000毫米mm
主油缸 main cylinder: 3pcs
液压站功率hydraulic station:3KW
电机品牌motor brand:南京控制电机厂nanjing kongzhi 或同样品牌电机
机械加电控行程保护
foot switch+buttons controlling
外形尺寸:1450x2000x130mm
Overall dimension

E130 board lifter machine

12

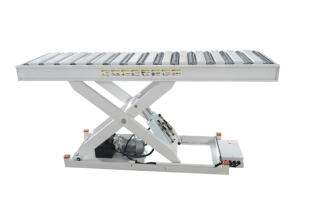

机器名称:1吨封边机滚筒升降机
Machine name: 1T roller board lifter machine for banding machine
台面尺寸table size: 2500x600x(300-1200)
最低高度min height: 300mm
升降高度 lifting height: 900mm
载重 weight lifting: 1000kgs
电机功率 motor power: 2.2KW
液压系统 hydraulic station: 双向节流阀油缸控制
Double direction throttle valve and cylinder

hydraulic lifter for edge banding machine

13

机器名称:4X4尺单层3吨免挖基坑升降机
Machine name: 4x4ft single layer 3T non foundation board lifter machine
闭合250毫米
Closing height 250mm
工作平台尺寸working table size:1300x1300毫米mm
电机功率motor power:3KW
提升重量lifting weight:3000kgs
机械加电控行程保护
foot switch+buttons controlling
电机品牌motor brand:南京控制 nanjing kongzhi
国家标准化电控箱,脚踏开关+按钮控制
National standard controlling cabinet, foot switch+buttons controlling
机器重量machine weight:500公斤kgs
包装方式:缠绕膜包装,木箱另外收费
Packing methods: Wrapping film

1300x1300mm hydraulic lifter machine

14

机器名称:E90 1.5吨免挖基坑升降机
Machine name: E90 1.5T non foundation board lifter machine
最大载重max. Lifting weight:1500公斤kgs
闭合高度closing height:90毫米mm
提升高度lifting height:900毫米mm
泵站功率hydraulic station power:1.5KW
机械加电控行程保护
foot switch+buttons controlling
外形尺寸:1350x1500x90mm
Overall dimension

E90 board lifter machine

15

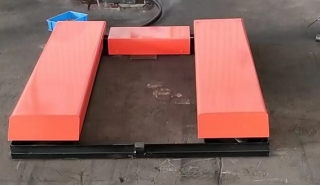

机器名称:E150-1.5吨U型免挖基坑升降机
Machine name: E150-1.5tons U type non foundation lifter machine
最大载重max. Lifting weight:1.5tons
提升高度到lifting height:1000毫米mm
主油缸 main cylinder: 2pcs
辅助油缸 support seat cylinder:2pcs
液压站功率hydraulic station:1.5-3KW
电机品牌motor brand:南京控制电机厂nanjing kongzhi或同样品牌电机
机械加电控行程保护
foot switch+buttons controlling
外形尺寸:1450x1200x150mm
Overall dimension

U type hydraulic lifter machine

16

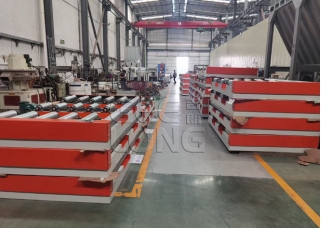

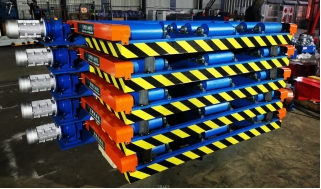

机器名称machine name:动力滚筒输送机48尺 powered roller ground roller table
工作平台尺寸working table size:1500x2200mm
滚筒直径roller diameter:108mm, 其他直径可以定制 other diameter we can customize
长滚筒长度long roller length:2200MM
短滚筒长度short roller length:450mm
滚筒壁厚roller thickness:4mm-6mm
减速机速比reducer ratio:1:59
电机功率motor power:1.5KW
机器外形尺寸dimension:1500x2500x300-350mm
机器大体重量machine weight:700kgs

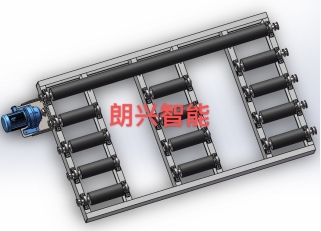

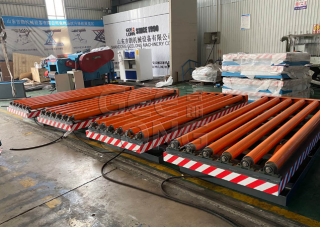

powered plywood roller table

17

机器名称machine name:动力滚筒输送机36尺 powered roller ground roller table
工作平台尺寸working table size:1200x2000mm
滚筒直径roller diameter:108mm, 其他直径可以定制 other diameter we can customize
长滚筒长度long roller length:1800MM
短滚筒长度short roller length:350mm
滚筒壁厚roller thickness:4mm-6mm
减速机速比reducer ratio:1:59
电机功率motor power:1.5KW
机器外形尺寸dimension:1200x2200x300-350mm
机器大体重量machine weight:550kgs

3x6ft powered roller table

18

机器名称machine name:高档动力滚筒输送机48尺 powered roller ground roller table
工作平台尺寸working table size:1500x2500mm
滚筒直径roller diameter:108mm, 其他直径可以定制 other diameter we can customize
长滚筒长度long roller length:2500MM
短滚筒长度short roller length:450mm
滚筒壁厚roller thickness:4mm-6mm
滚筒表面处理roller surface treatment: chromed
减速机速比reducer ratio:1:59
电机功率motor power:1.5KW
机器外形尺寸dimension:1500x2500x300-350mm
机器大体重量machine weight:900kgs

High grade 4x8ft powered roller table

19

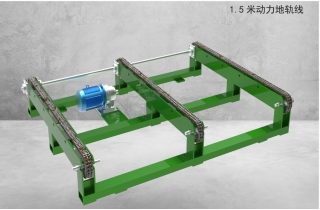

机器名称machine name:链板输送机48尺 powered chain ground roller table
工作平台尺寸working table size:1500x2200mm
减速机速比reducer ratio:1:59
电机功率motor power:0.75-1.5KW
机器外形尺寸dimension:1500x2200x300-350mm
机器大体重量machine weight:550kgs

chain plywood conveyor table

20

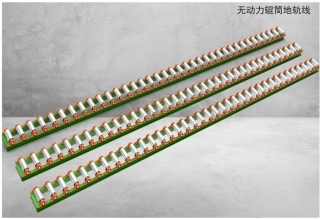

机器名称machine name:无动力滚筒输送线 unpowered roller line
滚筒宽度roller width:350mm
滚筒壁厚roller thickness:5-6mm
滚筒长度可以定制 roller length can be customized
机器框架 roller line frame support work:12#槽钢 channel steel
适合成垛胶合板运输
Applicable for stacked plywood conveying work

unpowered roller line
