Product Name:Vertical veneer composer machine, L type veneer composer machine

Characteristic: this veneer composer machine is composed with two heads and one stacking machine, this machine is used to do the composing work in the transverse and vertical veneers,to improve the high efficiency in plywood production.

Description of Machines

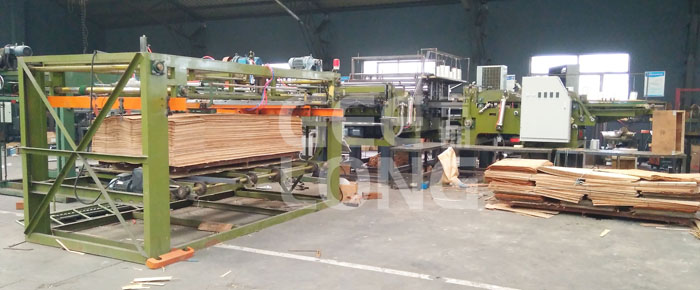

Main machine pic as below:

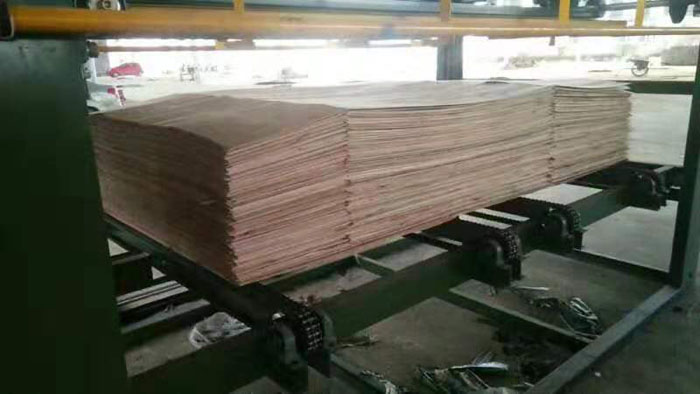

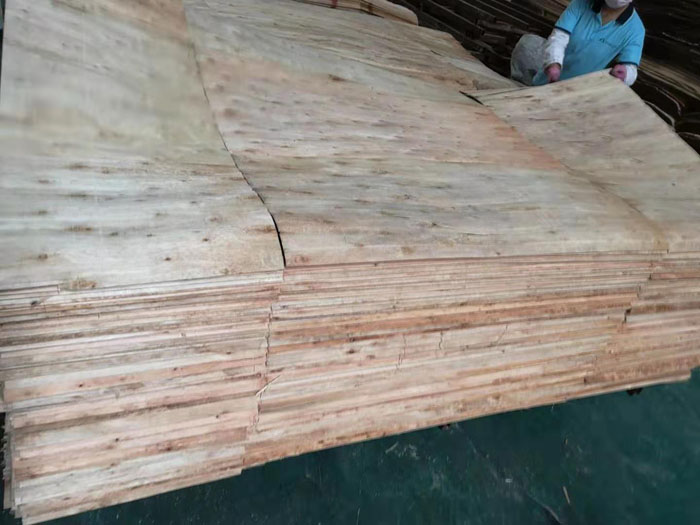

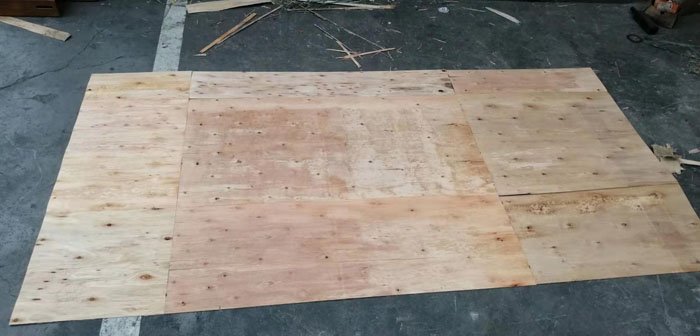

After composing work, the performance as below:

Specifications of this vertical veneer builder, veneer composer machine:

Product

Long Core Composer

Drive

Servo Motor

Structure

Whole Steel Plate Laser Cutting

Transfer Speed

0-35m /Minute (adjustable)

Working Efficiency

180-200pcs/h£¨finished jointing veneer£©

Covered Area

36©O

Transverse Core Composer Length

4000mm

Transverse Core Composer Width

2600mm

Transverse Core Composer Height

2500mm

Vertical Core Composer Length

5000mm

Vertical Core Composer Width

2600mm

Vertical Core Composer Height

3000mm

Stacker Length

4000mm

Stacker Width

2200mm

Stacker Height

2300mm

Total Weight

11000kg

PLC

Taiwan Delta PLC

Drive

INVT Servo Motor 3KW X 4  £»   1.5KWX1

Transverse Core Composer Edging Cutting

Motor + Chain Tail Clutch Brake

Vertical Core Composer Edging Cutting

Converter

Transverse Core Composer Front Reducer

NEWSTART Reducer

Transverse Core Composer Rear Reducer

NEWSTART Reducer

Rotary Cylinder

Germany Festo X 2

Total Power

35KW

Air Condition(1.5P)

2

Working Desk

2

Lifting Platform

1

External Stacker

1

Electric lateral platform

Standard

Feeding Veneer Corrector

Standard

Machine Color

Selectable

Elevator-platform

Standard

Speed control

Standard

Finished panel Counter

Standard

Notice: Our company is responsible for the installation, debugging(Customers are responsible for round-trip tickets and accommodation), providing the perennial after-sales service.
