Wide belt sanding machine for sell:
two heads and three heads all available.
Welcome to inquiry our sanding machine.

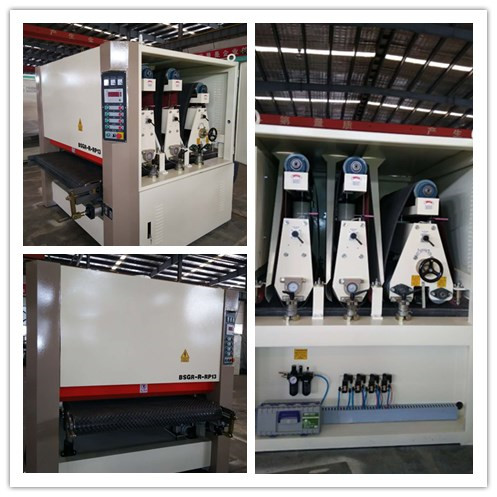

Single machine pics please check the pic as below:

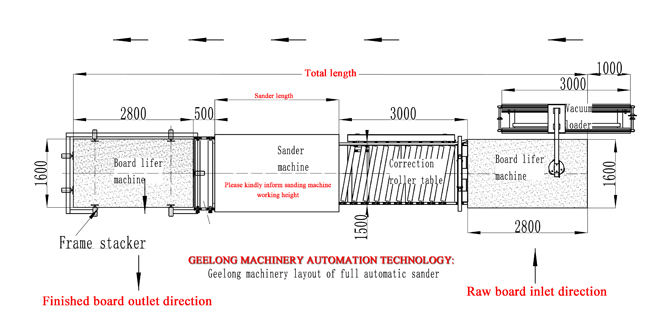

Full Automatic Plywood Board Sanding Line model A:
Equipment list of model A full automatic sanding line:
| 1 |
Board lifter machine for material raw board inlet |
| 2 |
Board vacuum loader |
| 3 |
Correction roller table |
| 4 |
Sanding machine(belts, rollers both ok) can buy from us, also we have reform this your exisiting sanding machine to full automatic sanding line, can save three persons labor. |
| 5 |
roller table for raw material board outlet |
| 6 |
Stacker machine for sanded wood board. |
| Note |
If you want to reform u existing machine with automatic technology, Geelong engineers will be available and happy to go u machines place to do the designing work, and produce the automatic equipments, then send to u, and we can guarantee 100% the automatic machines we produced for u is excellent quality and must 100% can help u save the expensive labor costs. |

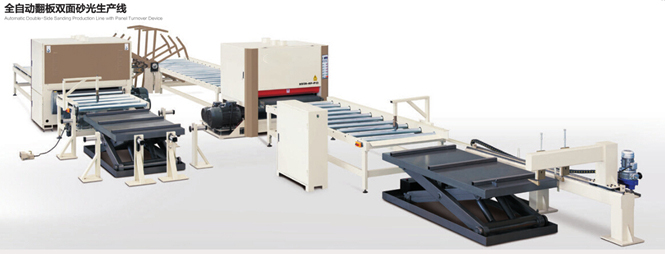

Full Automatic Plywood Board Sanding Line model B:
Equipment list of model B full automatic sanding line, sanding machine:
| 1 |
Board lifter machine for plywood board based board |
| 2 |
Plywood board pusher device |
| 3 |
Roller table for inlet conveyor |
| 4 |
wide belt sanding machine No.1 |
| 5 |
Roller table for connecting sanding machine with overturning machine |
| 6 |
Overturning machine for turning another side back to another side |
| 7 |
Roller table for conveying the board into next process |
| 8 |
Wide belt sanding machine No.2 |
| 9 |
Roller table for board outlet |
| 10 |
Stacker machine |
| Note |
Need to equip one air composer machine along with sanding line. |

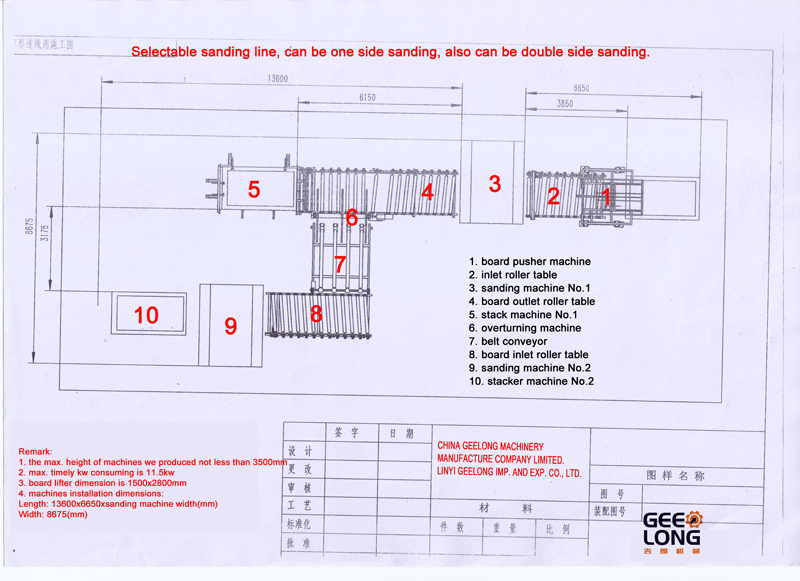

Another Full automatic sanding machine designed layout drawing:
Remark: this line u can use one face full automatic sanding line is ok, want to us
two sides sanding line also is ok, sections is two.
2+4 double side sanding production line for particle board production line
and for full automatic mdf production line:
| 1 |
Board pusher and board lifter machine |
| 2 |
Roller table for board inlet |
| 3 |
Two heads double side sanding machine |
| 4 |
Connecting roller table |
| 5 |
Four heads double side sanding machine |
| 6 |
Roller table for board outlet |
| 7 |
Stacker machine |
[Sanding machine working video]
|
