Product Name:500T Plywood Cold Press Machine, plywood prepress machine

Characteristic: Cylinder+hydraulic tank is installed in up position.



Description of Machines

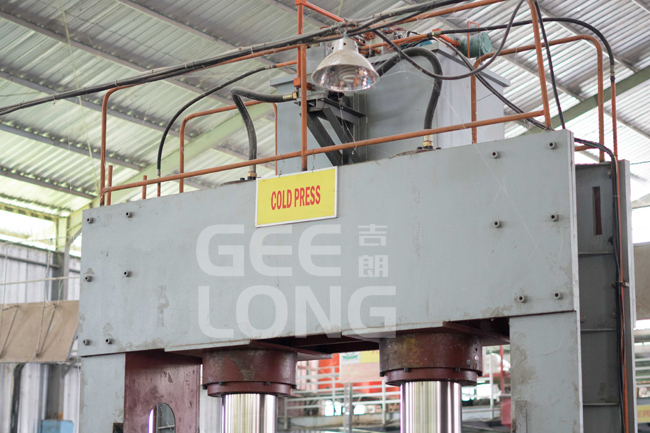

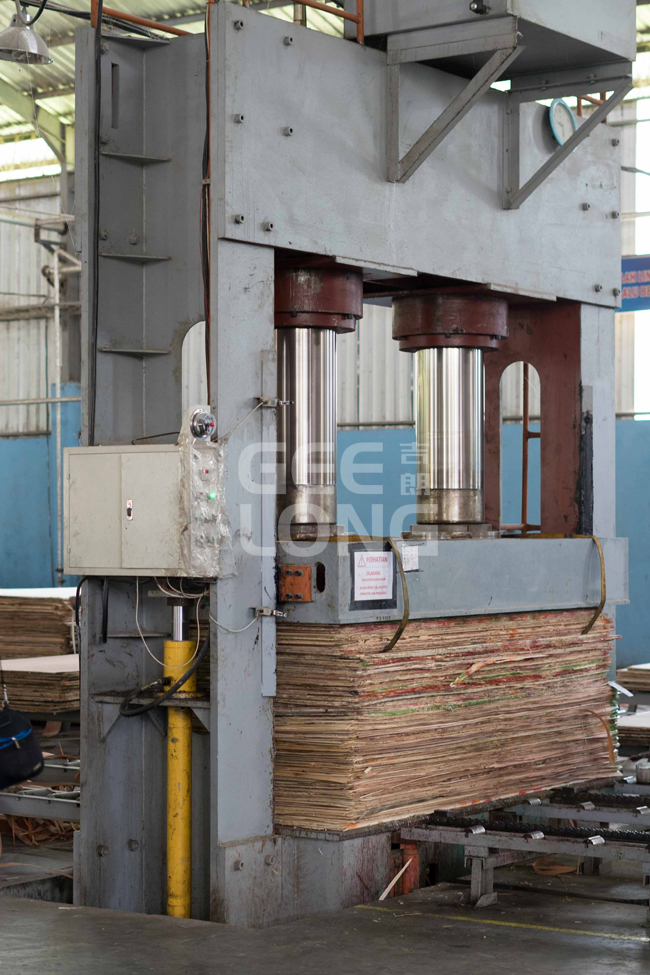

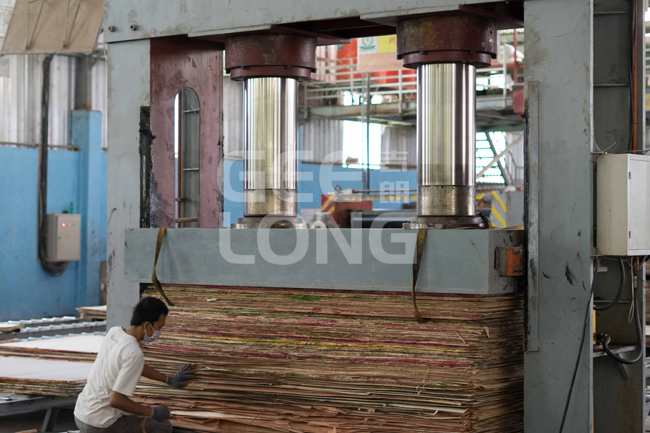

Description of plywood cold press machine:

The cold press is a necessary equipment in plywood machine. The machine

is used to pre-press the glued veneer and to make it flat and stick together.

The machine is suitable for pre-press process of making plywood, blockboard

and decorative board.

Geelong 's cold press machine specializes in woodworking process and is fit

 for making cold pressed cutter blade, grinding wheel and resin bond wheel which

 can be finished if heating plates are used. In additional to, the cold press can

 be applicable in density boards, shaving board, veneer boards, solid wood boards

, wood glue and woodworking industry.

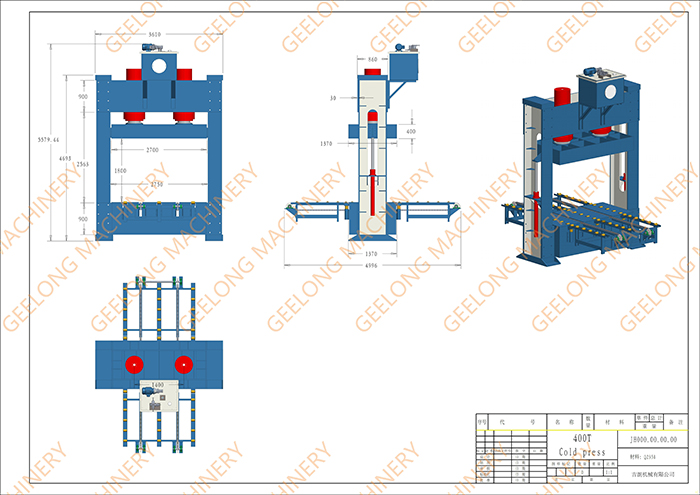

Plywood cold press machine layout drawing for your checking:

Technical parameter of this plywood/blockboard cold press machine:

Model GL-500T
Size of hot platen 1370x2700mm(4'x8'ft)
Total pressure 500Tons/5000KN
Unit pressure 16.8kg/cm²
Main cylinders/rans Dia.375mmx2sets
Openning ran/cylinders Dia.80 x 2sets
Openning distance 300-1200mm
Pressing stroke(Max) 900mm
Platen up-down speed 550mm/min
Pressing speed 150mm/min
Motor for pump 11kwx6P
motor for conveyor 0.75kwx4P
Finished machine overall size 3610x2105x4645(LXWXH)

Working video of this plywood cold press machine:
