Product Name:Plywood Spindle less Veneer Peeling Machine

Size:4feet, 8feet, OEM your peeling length

Selection: veneer clipper/veneer guillotine

cutter can be purchased along with this

veneer peeling machine.

Description of Machines

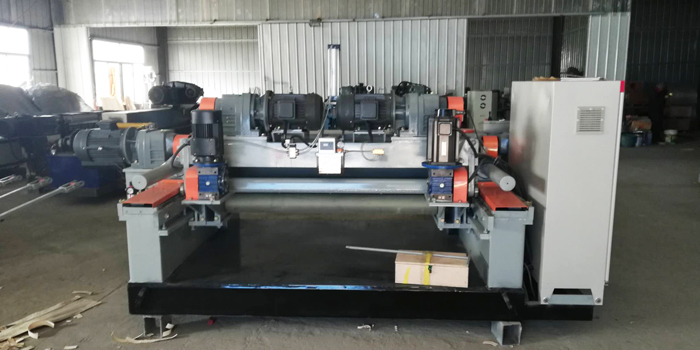

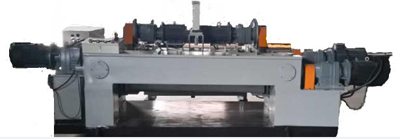

Spindle less wood log veneer peeling machine(with cutter inside and with servo motor):

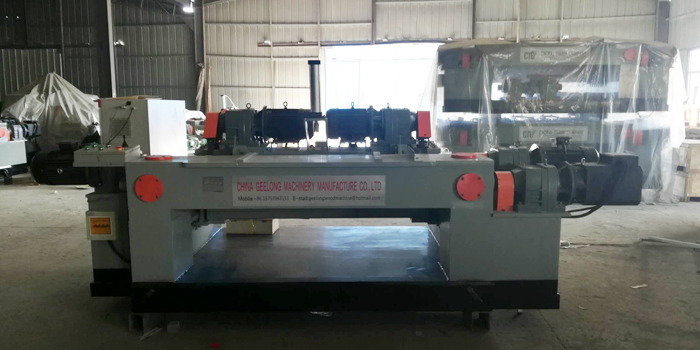

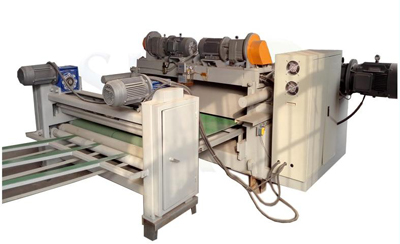

Spindle less wood log veneer peeling machine(with cutter outside and with servo motor):

Technical parameters of 4 feet 45m/min Spindleless Veneer Lathe With Cutter Inside:

Length of peeler log 1000-1300mm
Diameter of peeler log Dia.28-Dia.400mm
Length of blade 1500mm
Thickness of veneer peeler 0.8-3.6mm
Linear speed of host machine 45mm
Size of double roller(D x L) 120mmx1500mm
Size of single roller(D x L) 120mmX1500mm
Power of feeding motor 7.5kw servo motor
Power of single roller 5.5kw x 2
Power of double roller 11kw
Power of cutter 1.5kw
Power of rubber roller 1.5kw
Power of conveyor 1.5kw
Total power 34kw
Lead Screw And Nut Magnalium alloy China made
Total weight 4800KGS
Overall dimension 4200x2000x1380mm

Technical parameters of 4feet 55m/min Spindle less veneer peeling machine with cutter outside:

Length of peeler log 1000-1300mm
Diameter of peeler log Dia.28-Dia. 400mm
Length of blade 1500mm
thickness of veneer peeler 0.5-4mm
Diameter of driving roller 120mm
Diameter of pressure roller 120mm
Power of feeding motor 7.5kw servo motor
Power of single roller 4kwx2sets
Power of double roller 5.5kwx2sets
Power of cutter 2.2kw servo motor
Power of conveyor 1.5kw
Total weight 5200KGS
Overall dimension 4500x1600x1400mm

Rotary veneer cutter for veneer cutting

(we can OEM according to your requirements)

Model number GLVC-2650
Max. width of wood log 2650mm
Min. Length 400mm
Blade Size 2700x90x12.7mm
Speed of peeling 37-110m/min(adjustable - frequency changer)
Conveyor motor 1.5kw ratio 11
Rubber roller motor 4kw ratio 15
Slicer motor 4kw ratio 15
Dimension 4780x3490x1230mm
Weight 4500kgs

Model GLVC-1300
Veneer max. width 1300mm
Veneer min. length 400mm
Vneer thickness 1.00-6.5mm
Power 5.5kw
Dimension 4700x1500x1400mm
Weight Approx.2500kgs



Plywood peeling machine working video:

Wood log skin debarker machine:

Veneer Cutting machine:

Plywood veneer sorting and stacking line:
