Product Name:Plywood Glue Mixer Machine, plywood glue mixing machine

Size:Φ800 & Φ1000mmx800mm

Characteristic: Use Gear to replace Leather belt to connect motor and rotor.

Description of Machines

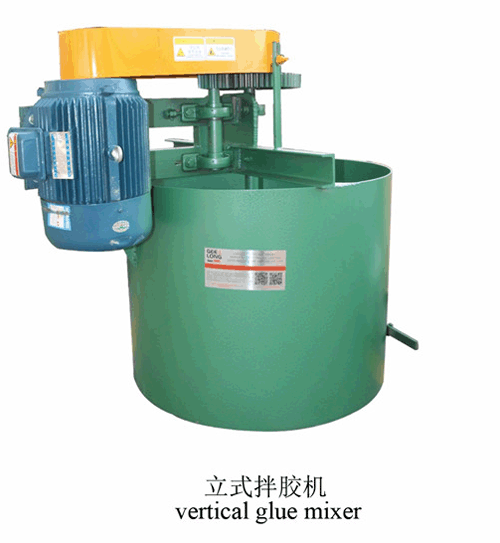

Old model of plywood glue mixer machine(installed in plywood prouduction line)

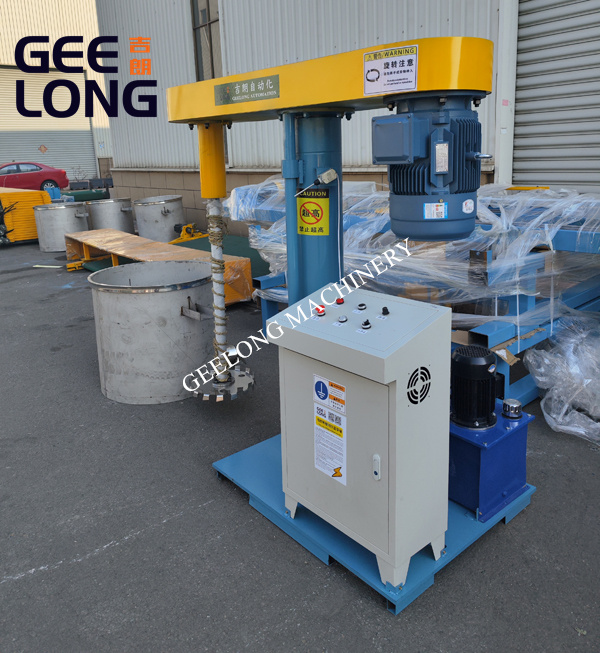

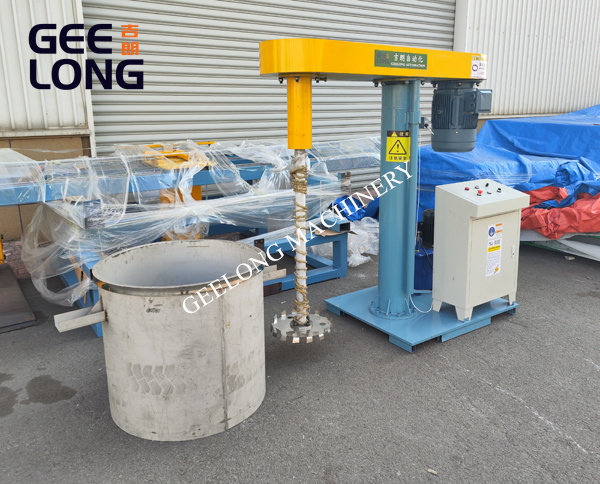

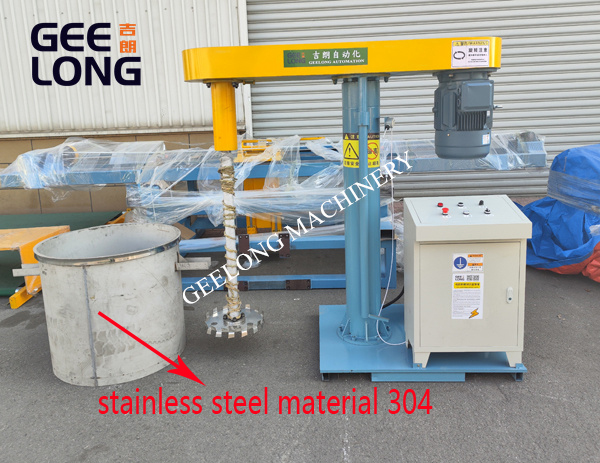

New model of plywood glue mixer machine(installed in plywood prouduction line)

Plywood glue mixer mixing machine

1. Introduction

Glue Disperser Mixer Stirrer Mixing Machine is used to mix, disperse and dissolve

materials of different viscosities. The highly rotating disc exerts a strong shear,

 impact, crush forces to quickly mixer, dissolve, disperse and grind materials.

 It is widely used in glue industry. Such as in plywood production line, glue mixer

machine is the necessary machine before glue spreader machine, and this machine,

the motor wil be equipped with the frequency changer, then this plywood glue mixing

machine can have high speed, and capacity and effectiveness is good and excellent.

2. Main features

a. Suitable for industrial production

b. With shaft protection device to ensure safe operation

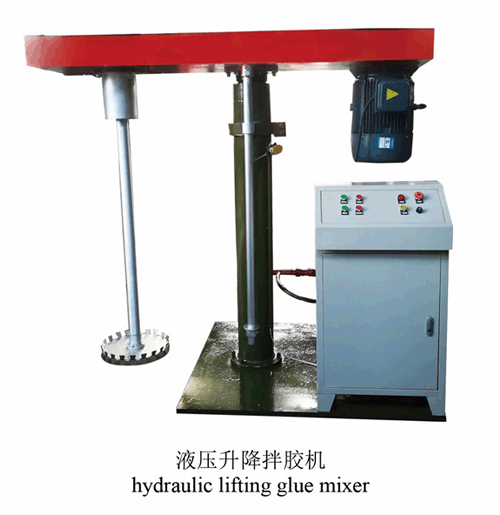

c. Hydraulic lifting, stable & safe

3. Function selection

a. Imported or domestic top brand inverter for option, reduction gear for option

b. Stable hydraulic lifting, floor & platform type for option

c. Belt/pneumatic/manual clamping for option

d. Vacuum/pressure/Ex-proof type for customization

e. Customized as required.

4. Technical data:

 Model

Power

Speed

Hydraulic pump

Capacity

Disc dia.

Stroke

Weight

 GLPM-1.5

 1.5kW

0-1440rpm

0.55kW

20-100L

 100mm

 500mm

350kg

 GLPM-2.2

 2.2kW

 0-1440rpm

0.75kW

50-150L

 150mm

 600mm

 400kg

 GLPM-4

 4kW

 0-1440rpm

0.75kW

50-200L

 200mm

 700mm

 450kg

 GLPM-5.5

 5.5kW

 0-1440rpm

0.75kW

80-250L

 200mm

 800mm

 600kg

 GLPM-7.5

 7.5kW

 0-1440rpm

1.1kW

100-300L

 250mm

 800mm

 700kg

 GLPM-11

 11kW

 0-1440rpm

1.1kW

100-400L

 250mm

 900mm

 750kg

 GLPM-15

 15kW

 0-1440rpm

1.1kW

100-500L

 300mm

900mm

 800kg

GLPM-18.5

18.5kW

 0-1440rpm

1.1kW

100-800L

 300mm

1100mm

1000kg

 GLPM-22

 22kW

 0-1440rpm

1.1kW

150-1000L

 300mm

1100mm

1100kg

 GLPM-30

 30kW

 0-1440rpm

1.1kW

200-1200L

 350mm

1100mm

1200kg

 GLPM-37

 37kW

 0-1440rpm

1.5kW

300-2000L

 400mm

1200mm

1300kg

 GLPM-45

 45kW

 0-1440rpm

1.5kW

500-2000L

 450mm

1200mm

1400kg

 GLPM-55

 55kW

 0-1440rpm

1.5kW

1000-2000L

 500mm

1300mm

1500kg

 GLPM75

 75kW

 0-1440rpm

2.2kW

2000-4000L

 550mm

1800mm

3000kg

 GLPM-90

 90kW

 0-1440rpm

2.2kW

4000-6000L

 580mm

2300mm

3500kg
