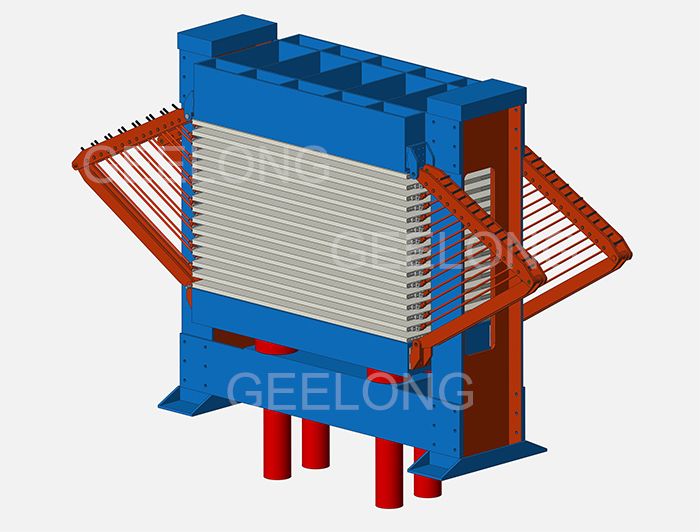

Product Name:Plywood Breathing Hot Press Type Veneer Dryer

Characteristic: OEM LAYERS AND PRESSURE.

WITH HYDRAULIC STATION+CONTROLLING CABINET.

Description of Machines

Model A(Tube Veneer Dryer Machine):

Technical parameters of this machine Model A:

Norminal pressure 600KN
Heating tube seamless square tube
Combined heating tube 1370x2700x42mm covered with steel plate skin
Layers of this dryer machine 18 layers can be OEM
Main cylinders Dia.120mmx2sets
Main cylinders original Wuxi solid cylinders
Motor power 7.5kw
Veneer thickness available 1-6mm
HS code of this machine 8419320000

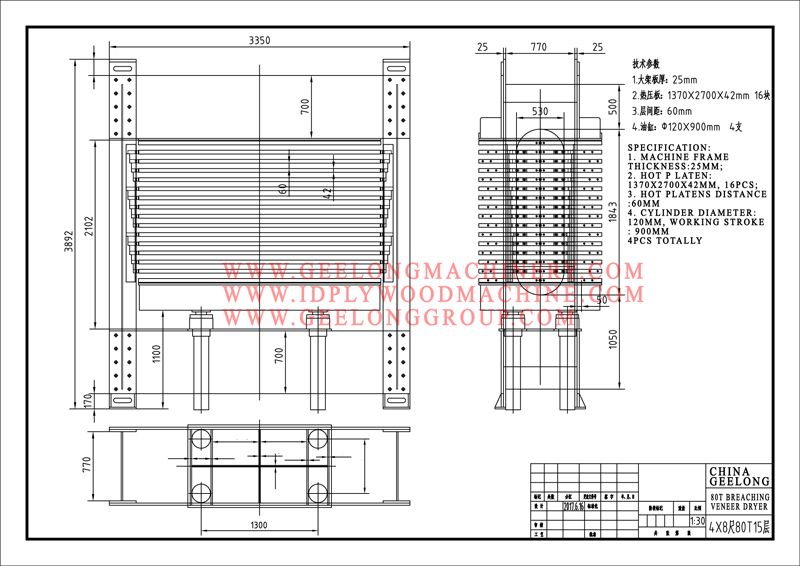

Model B(Hot Platen Veneer Dryer Machine):

Technical parameters of this machine Model B:

Norminal pressure 800KN
Hot platen size 1370x2700x42mm
Layers 15
Main cylinder Dia.100mmx4sets
Main cylinders body solid
Motor power 15kw
Same time closing device included.
Motor Shandong huali motor
Electrical panel box stainless steel plate
Electircal parts inside panel PLC: DELTA, others will be imported brand.
Core veneer available 1-10mm
Hs code 8419320000

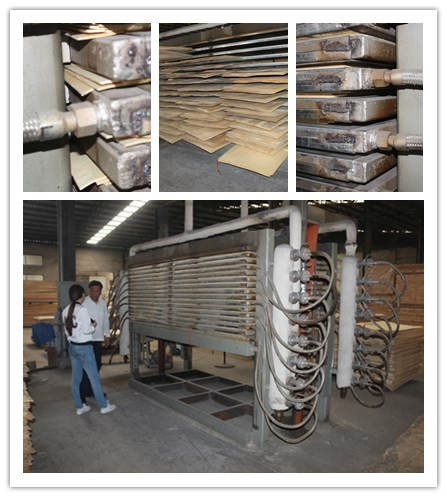

[Plywood breathing veneer core dryer machine plant working video]
