Model of our boiler machine as below:

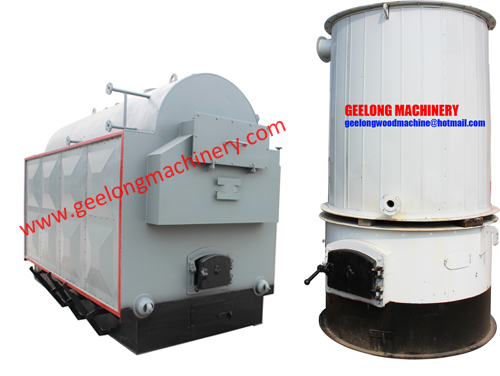

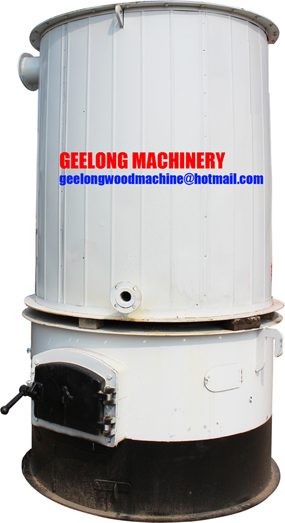

1) vertical & horizontal boiler machine, material can be Wood, biomass granules, bitumious
| Technical parameters for organic heat transfer material heater |
| Model |
YGL-120MA |
YGL-240MA |
YGL-350MA |
YGL-500MA |
YGL-700MA |
| Name |
| Rated thermal power KW |
120 |
240 |
350 |
500 |
700 |
| Design thermal efficiency % |
73.1 |
74.2 |
75.1 |
74.7 |
74.2 |
| Working pressure Mpa |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
| Max. working temperature ℃ |
310 |
310 |
310 |
310 |
310 |
| Boiler internal oil capacity m³ |
0.073 |
0.23 |
0.36 |
0.47 |
0.56 |
| Tube Connection Diameter DN |
32 |
50 |
50 |
80 |
80 |
| Exhaust gas temperature |
207 |
212 |
199 |
205.5 |
192.7 |
| Circulation oil quantity m³/h |
17.1 |
17.5 |
20.5 |
29.3 |
41 |
| Technical parameters for organic heat transfer material heater |
| Model |
YLL-350MA |
YLL-500MA |
YLL-700MA |
YLL-1000AM |
YLL-1200MA |
YLL-1400MA |
YLL-1850MA |
| Name |
| Rated thermal power KW |
350 |
500 |
700 |
1000 |
1200 |
1400 |
1850 |
| Design thermal efficiency % |
75 |
75.1 |
77.6 |
78.3 |
79.2 |
79.6 |
79.2 |
| Working pressure Mpa |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
| Max. working temperature ℃ |
310 |
310 |
310 |
310 |
310 |
310 |
310 |
| Boiler internal oil capacity m³ |
0.38 |
0.47 |
0.71 |
0.82 |
0.91 |
1.03 |
2.16 |
| Tube Connection Diameter DN |
50 |
80 |
80 |
100 |
125 |
150 |
200 |
| Exhaust gas temperature |
200.8 |
200.1 |
212.5 |
231.6 |
219.5 |
235.6 |
164.8 |
| Circulation oil quantity m³/h |
21 |
29.58 |
45.6 |
62.3 |
84.2 |
100 |
128 |
| Technical parameters for organic heat transfer material heater |
| Model |
YG(L)W-1200 |
YG(L)W-1400 |
YG(L)W-1900 |
YG(L)W-2400 |
YG(L)W-2900 |
YG(L)W-3500 |
YG(L)W-4700 |
| Name |
| Rated thermal power KW |
1200 |
1400 |
1900 |
2400 |
2900 |
3500 |
4700 |
| Design thermal efficiency % |
80 |
81.3 |
80.9 |
81.3 |
81.4 |
80.5 |
81.7 |
| Working pressure Mpa |
<=1.0 |
| Max. working temperature ℃ |
310 |
| Boiler internal oil capacity m³ |
1.26 |
1.86 |
2.23 |
2.86 |
3.57 |
4.12 |
4.64 |
| Tube Connection Diameter DN |
125 |
125 |
150 |
150 |
150 |
200 |
200 |
| Exhaust gas temperature |
150.8 |
142.7 |
135.9 |
119.9 |
144.5 |
142.6 |
138.7 |
| Circulation oil quantity m³/h |
76.4 |
118.6 |
128.9 |
140.5 |
169.8 |
204.6 |
256.9 |

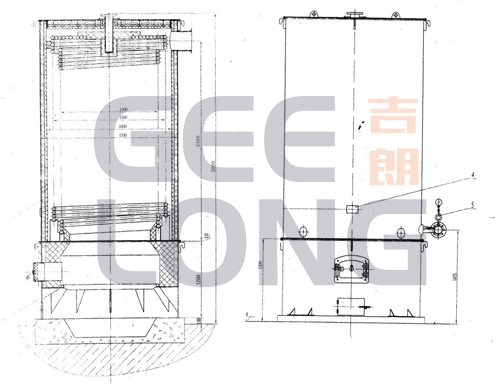

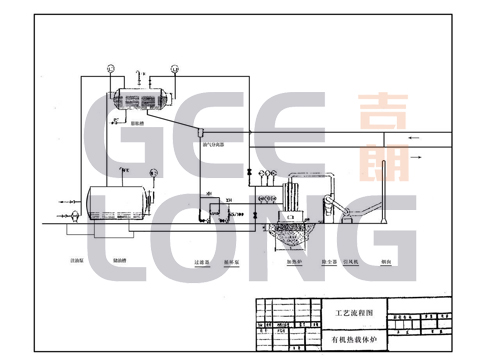

One capacity boiler machine drawing showing:

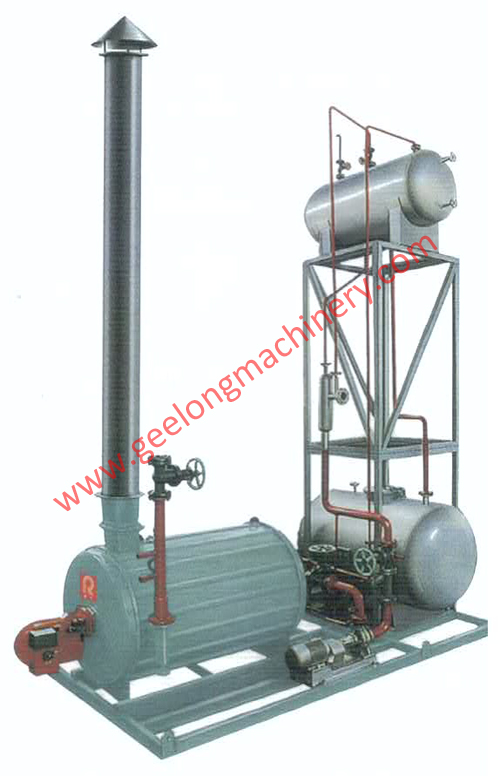

2) full oil(gas) organic heat carrier boiler, consuming material can be Light oil, natural gas
| Technical parameters for YYW boiler |
| Model |
YYW-120YQ |
YYW-240YQ |
YYW-350YQ |
YYW-500YQ |
YYW-700YQ |
| Name |
| Rated thermal power KW |
120 |
240 |
350 |
500 |
700 |
| Design thermal efficiency % |
89.6 |
89.52 |
89.1 |
88.7 |
88.2 |
| Working pressure Mpa |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
| Max. working temperature ℃ |
310 |
310 |
310 |
310 |
310 |
| Boiler internal oil capacity m³ |
0.08 |
0.23 |
0.29 |
0.35 |
0.42 |
| Tube Connection Diameter DN |
32 |
50 |
50 |
80 |
80 |
| Exhaust gas temperature |
192 |
189 |
198.9 |
200.5 |
216.5 |
| Circulation oil quantity m³/h |
17.1 |
20.34 |
20.5 |
40.27 |
56.37 |
| Technical parameters for YYW boiler |
| Model |
YYW-1000YQ |
YYW-1200YQ |
YYW-1400YQ |
YYW-1900YQ |
YYW-2400YQ |
| Name |
| Rated thermal power KW |
1000 |
1200 |
1400 |
1900 |
2400 |
| Design thermal efficiency % |
86.3 |
87.2 |
86.9 |
89.3 |
90.1 |
| Working pressure Mpa |
1.0 |
1.0 |
1.0 |
1.0 |
1.0 |
| Max. working temperature ℃ |
310 |
310 |
310 |
310 |
310 |
| Boiler internal oil capacity m³ |
0.61 |
0.85 |
1.11 |
1.4 |
1.52 |
| Tube Connection Diameter DN |
100 |
100 |
125 |
150 |
150 |
| Exhaust gas temperature |
208.4 |
192.6 |
163.2 |
157.3 |
165.4 |
| Circulation oil quantity m³/h |
69.8 |
83.2 |
94.6 |
108.92 |
116.3 |
|
