Product Name:Board Lifter Machine, hydraulic board lifter machine

Characteristic: Support Other Hot/Cold/Sander/Saw Machine' Operation.

Several models for your selection, please refer to Technical parameter attached!

Description of Machines

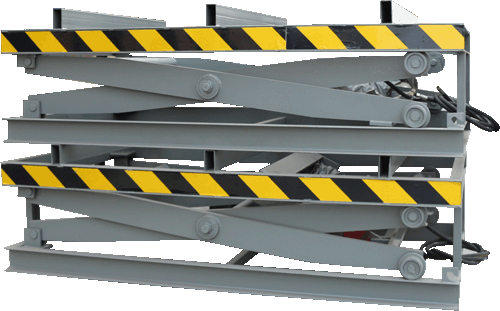

Normal model board lifter machine:

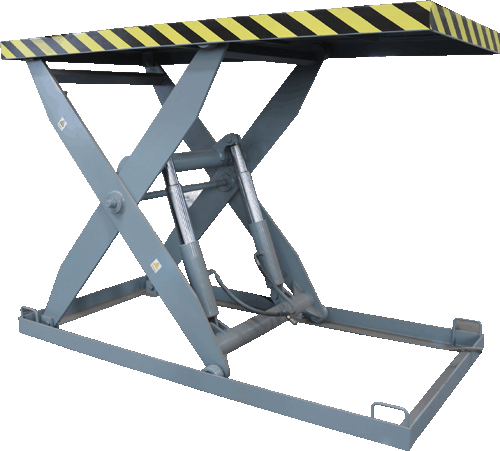

High quality and special design board lifter machine:

Description of GEELONG BRAND board lifter machine:

This machine is one of auxiliary machines in producing wooden board, can be used for plywood board,

particle board, MDF/HDF’s lifting and stacking work, convenient for loading boards into hot press, and

unloading boards out of hot press, is one necessary equipment of AUTOMATIC line, saving more labors

and increase the efficiency in large degree.



Feature of this machine:

1. This machine is welded by profile steel and CNC cutting steel plate, ensuring its high structural strength and stability.

2. Double wuxi cylinder lifting smoothly, easy for operation, lifting and closing speed is adjustable.

3. Lifting height and working table size can be customized as requirements, design humanization.

4. Hydraulic station must be equipped with overflow valve & throttle valve, ensuring safety,

and using foot switch control, simple operation.

Machine specification table:

Model No.

GBL4X8

Working table size

1200x2400mm Customized

Max. Loading weight

3000kgs Customized

Height when closing

250mm-560mm

Cylinder Dia. & Quan.

Φ130x2sets

Total power

3kw

Overall dimension

2400x1200x560mm

Weight

800kgs

Working voltage

380/415/440V, Customized

HS code

8428909090
