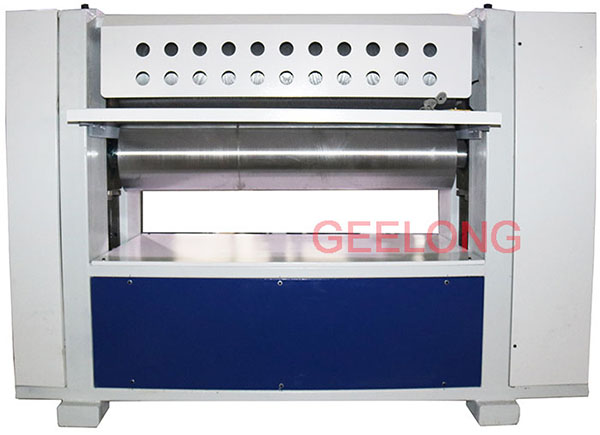

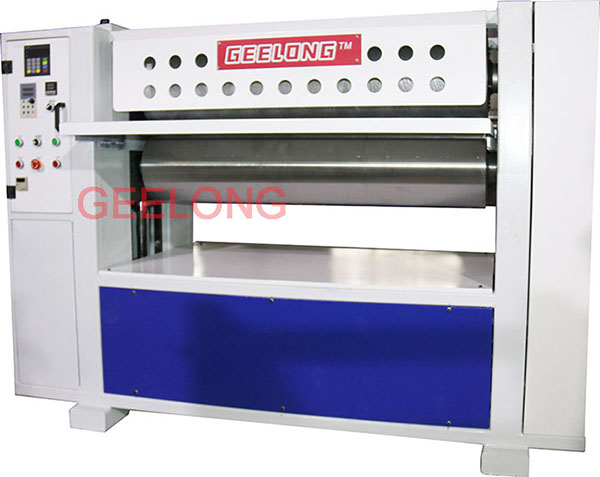

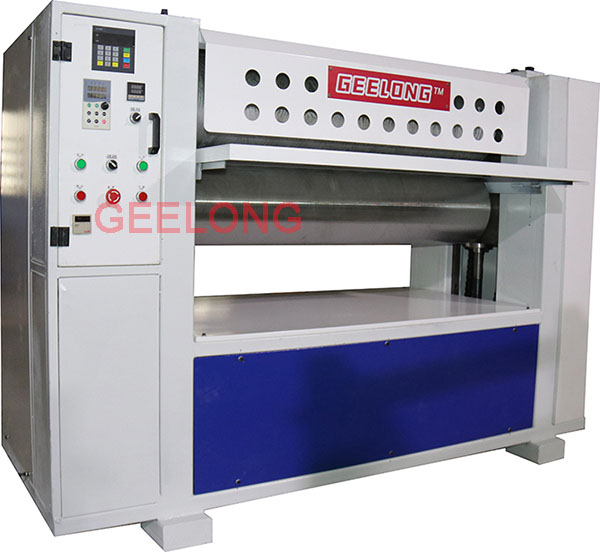

Product Name:Mdf embossing machine, Wood embossing machine,

Plywood embossing machine

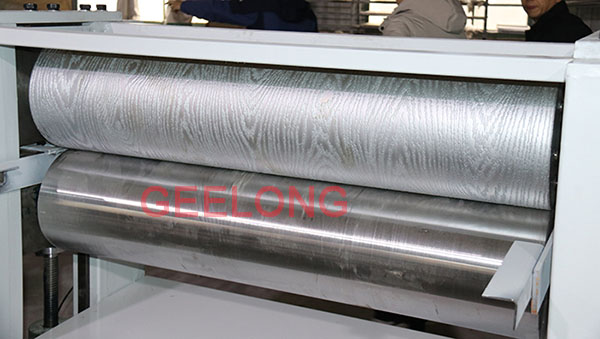

Characteristic: this machine working priciple is used the wooden pattern

roller with heating processing, then use the reducer machine give more

high pressure on the mdf board, plywood, particle board, solid wood surface,

then the surface will be embossed into with different pattern,

welcome to inquiry our geelong brand embossing machine.

Description of Machines

wooden pattern roller press machine is new designed and hot selling wood-based processing machine by our company.

After this machine new design finished sucessfully till now, sucessfully sell to China market,

Malaysia, Indonesia, Vietnam, Iran, UAE, Turkey, Saudi Arabia, Russia...etc more countries,

are favored and accepted all over the world.

Features:

1. PLC control, one operator, automatic process, labor saving.
2. Precise thickness checking, minumum to reduce cutting volume.
3. Servo driver, effective overlap and jointing control.
4. High strengthened thread, improve product lengthways tensile force and flexibility, no break.
5. Supported by Germany Festo, Taiwan Delta, German Siemens, Japanese Mitsubishi and other international top brands.



Specification

GLYW650S/A

GLLMJ850S/A

GLLMJ1000S/A

GLLWJ1300S/A

Maximum feed size

650×150mm

850×150mm

1000×150mm

1300×150mm

Pressing depth

0.4-0.5mm

0.4-0.5mm

0.4-0.5mm

0.4-0.5mm

0.5-0.7mm

0.5-0.7mm

0.5-0.7mm

0.5-0.7mm

0.8-1.2mm

0.8-1.2mm

0.8-1.2mm

0.8-1.2mm

Motor power

5.5kw

5.5kw

5.5kw

7.5kw

Heating power

24kw/12kw

24kw/12kw

24kw/12kw

24kw/12kw

Pressing speed

0-20m/min

0-20m/min

0-20m/min

0-20m/min

Dimensions

1430×1350×1580mm

1430×1350×1780mm

1430×1350×1930mm

1430×1350×2280mm

Machine's weight

1000kg

1300kg

1600kg

2100kg



Working performance:

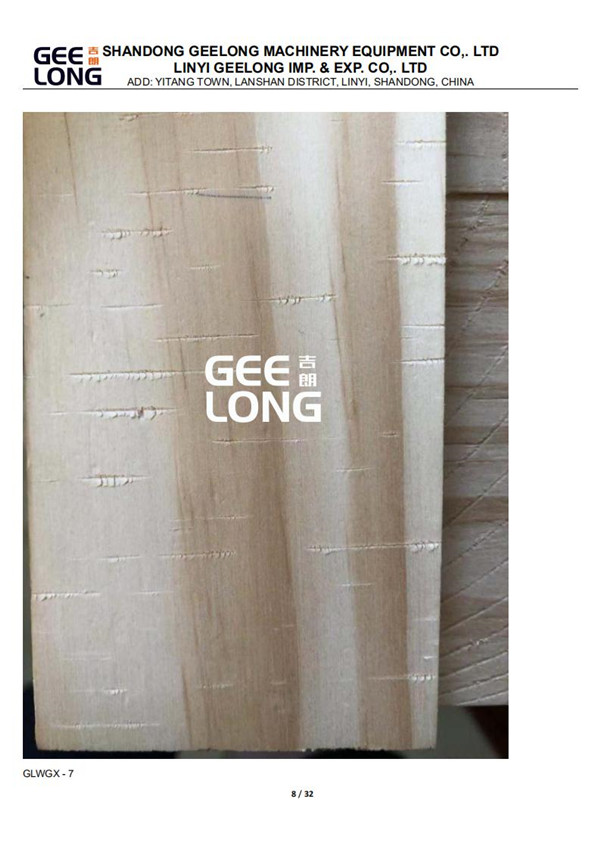

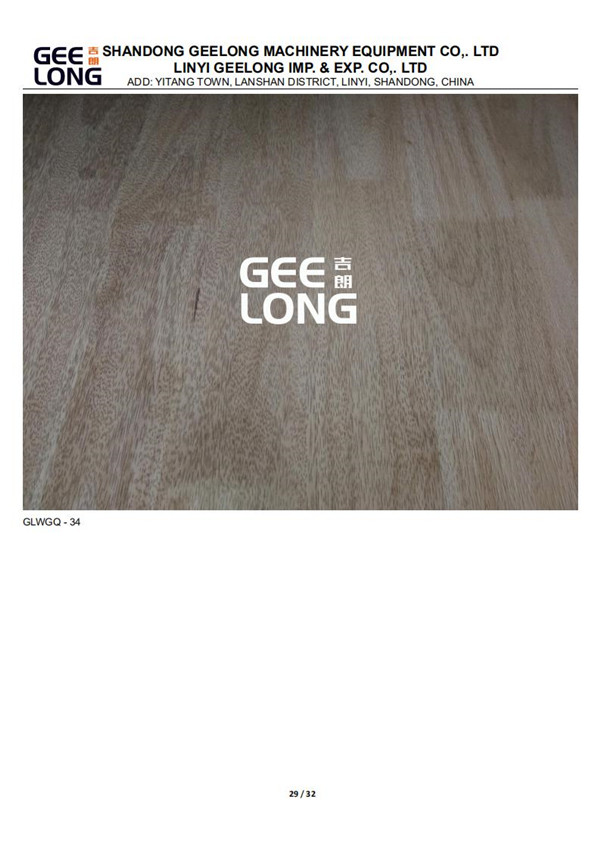

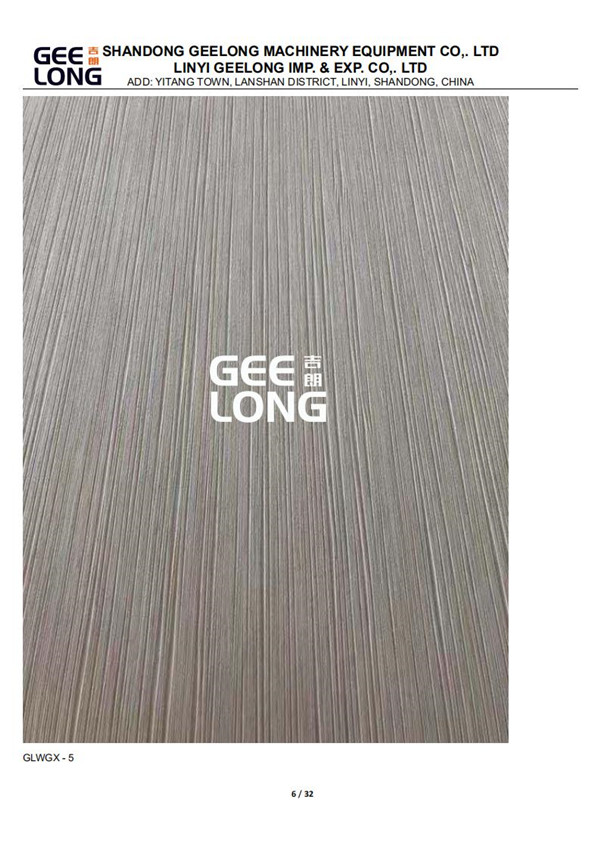

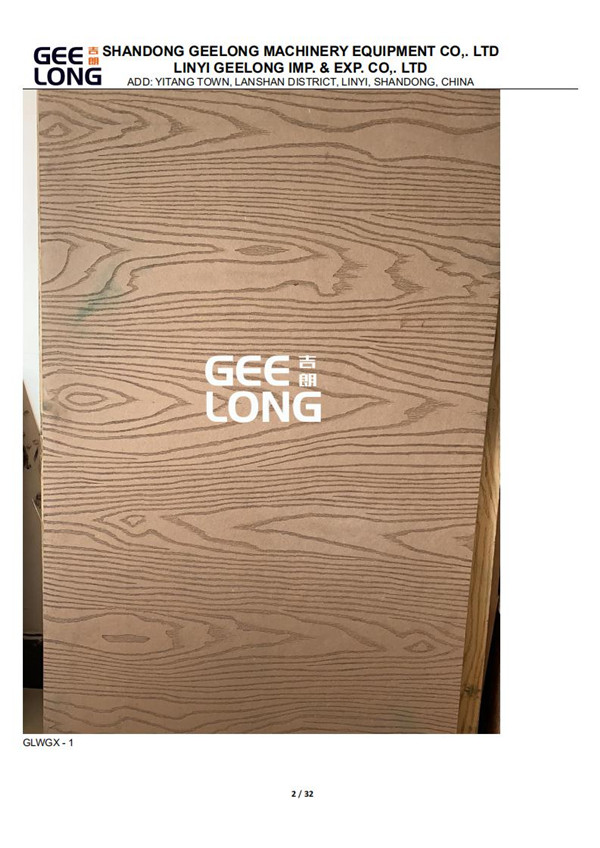

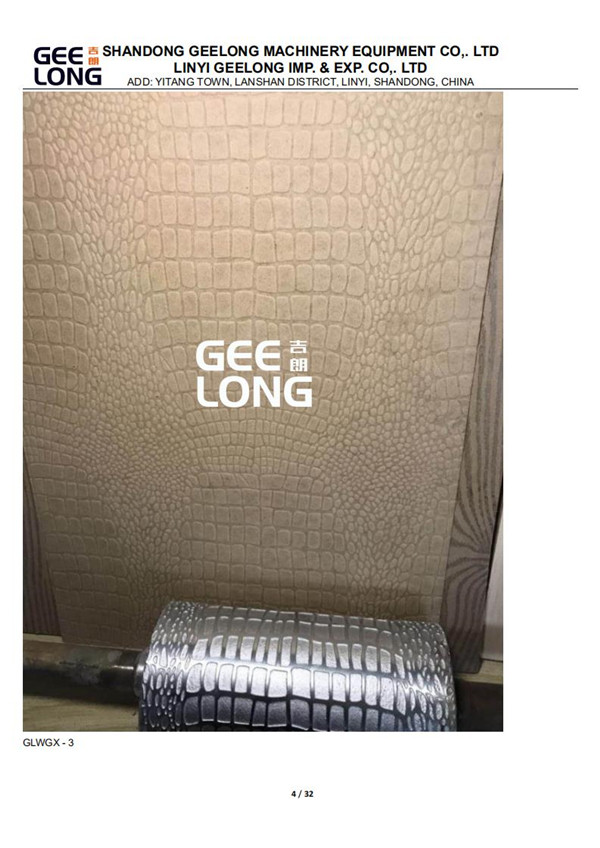

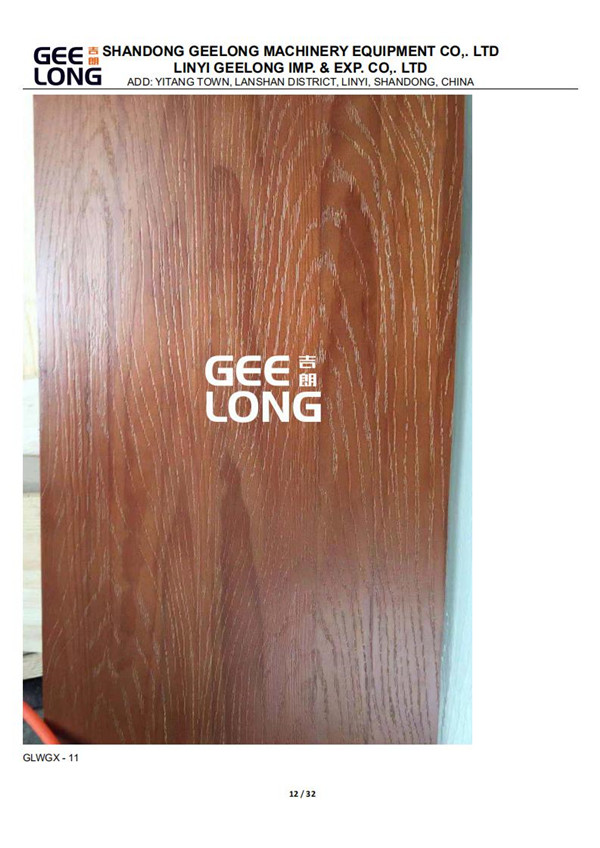

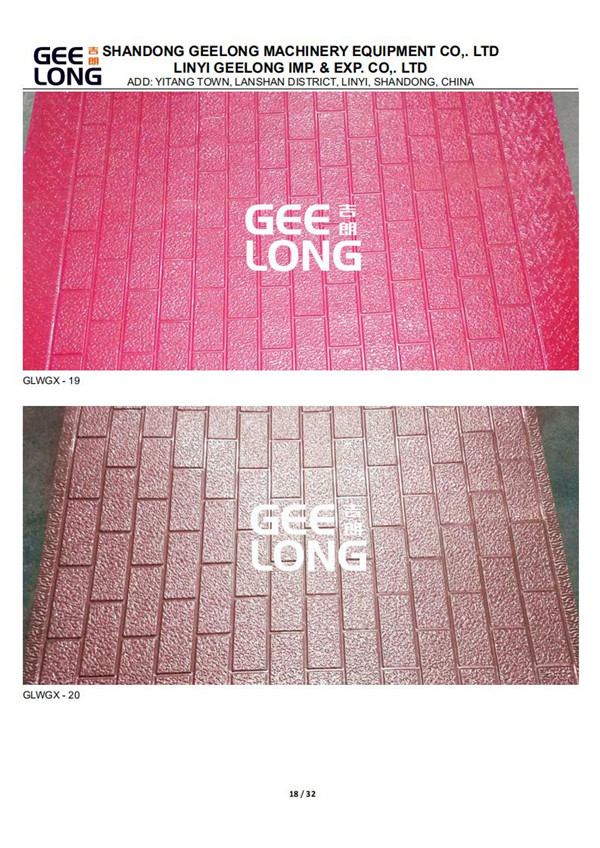

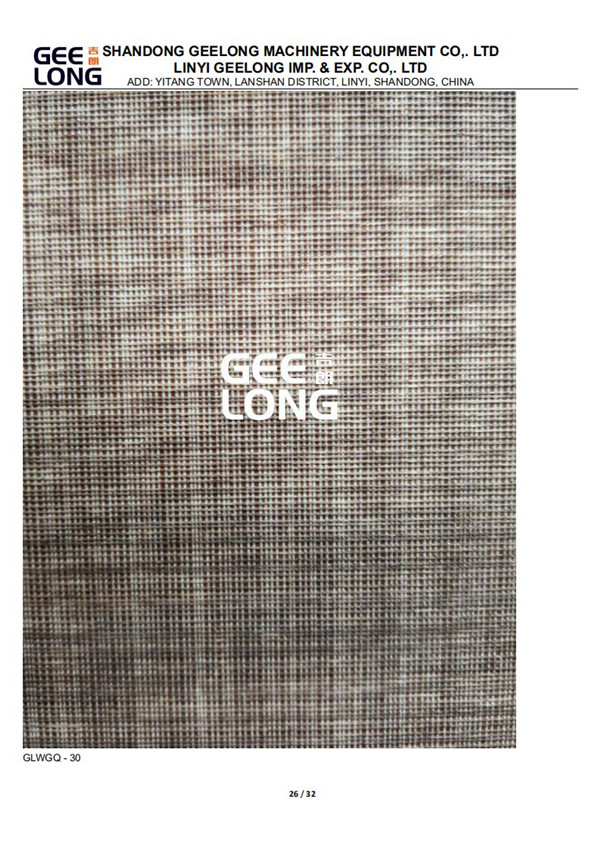

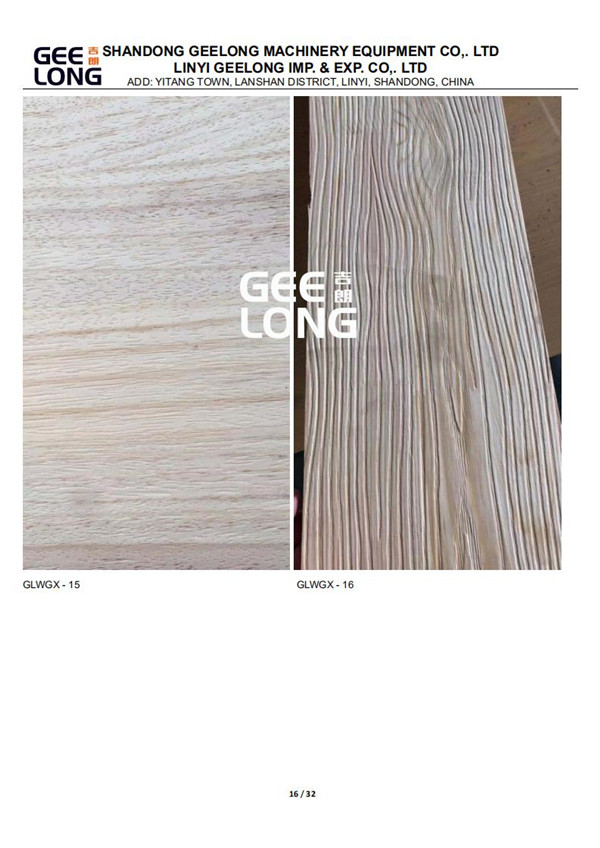

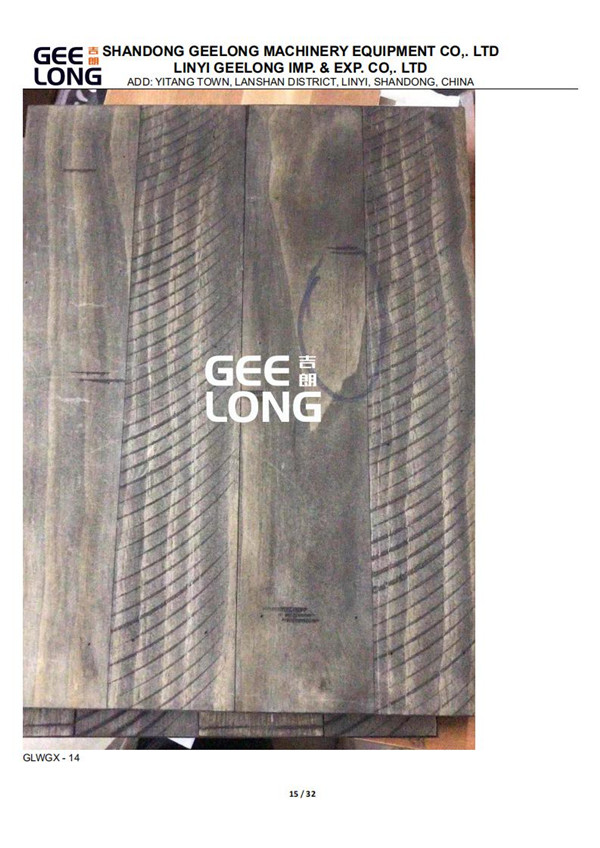

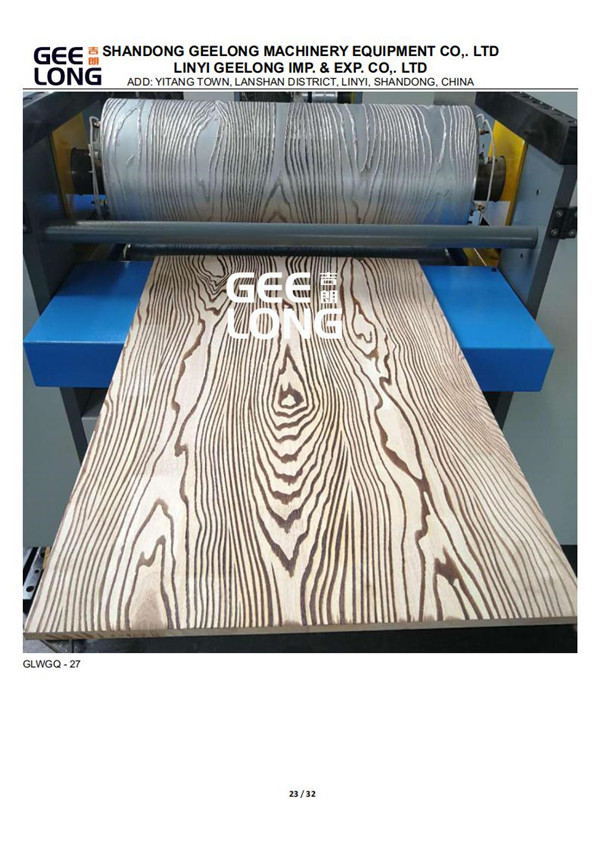

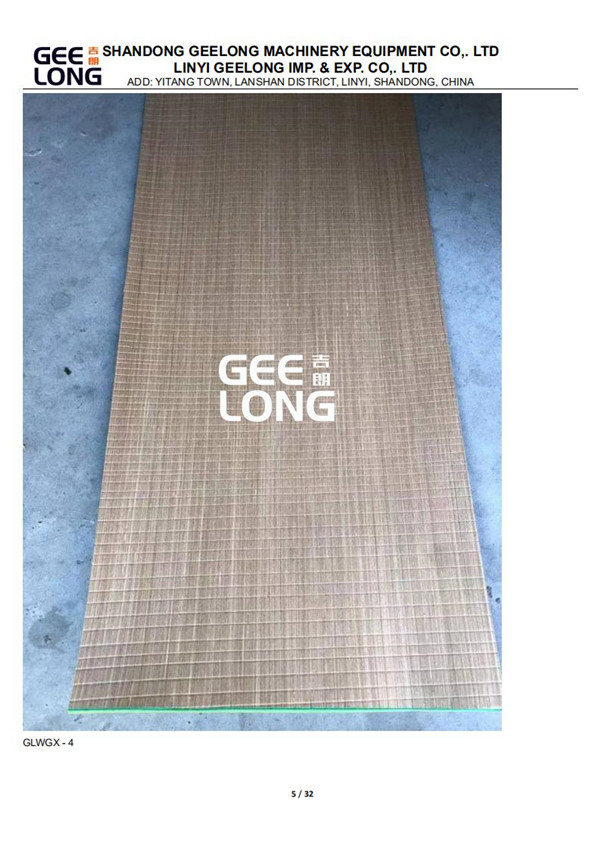

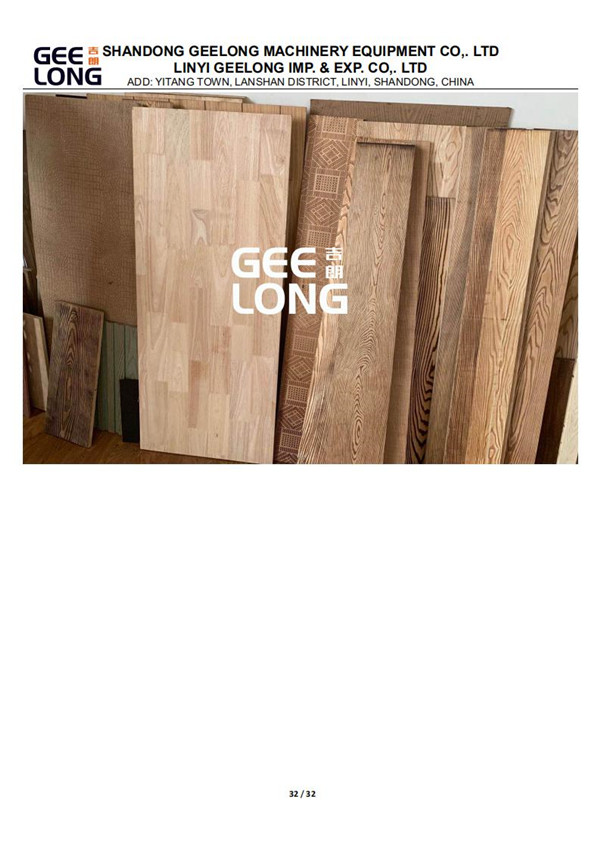

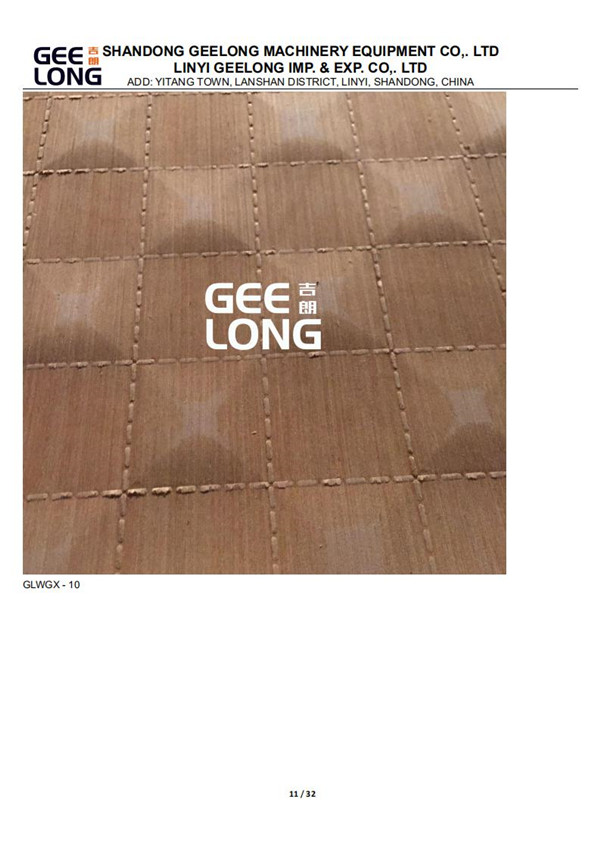

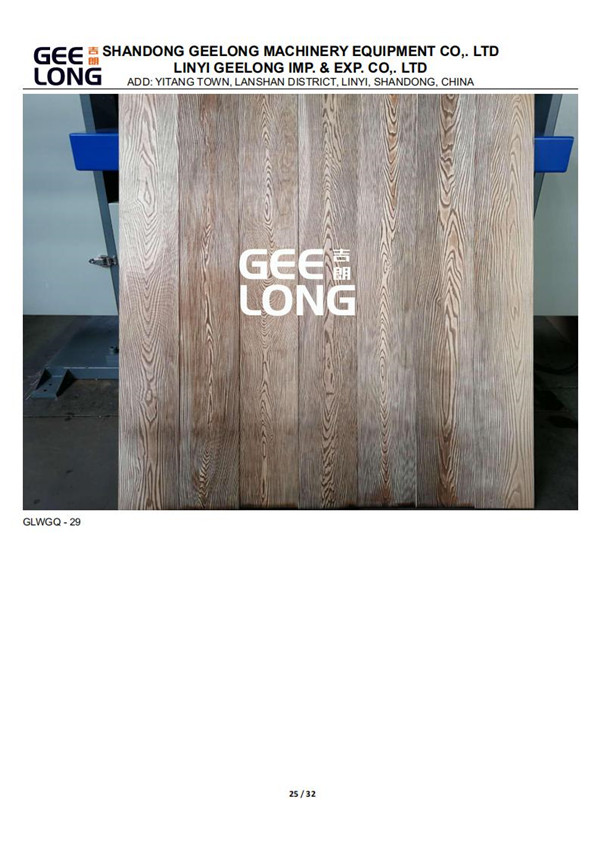

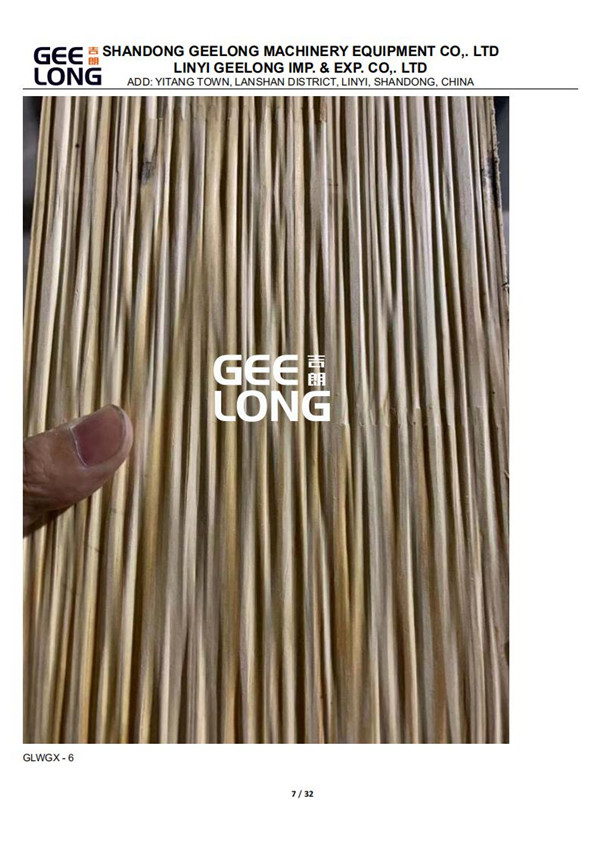

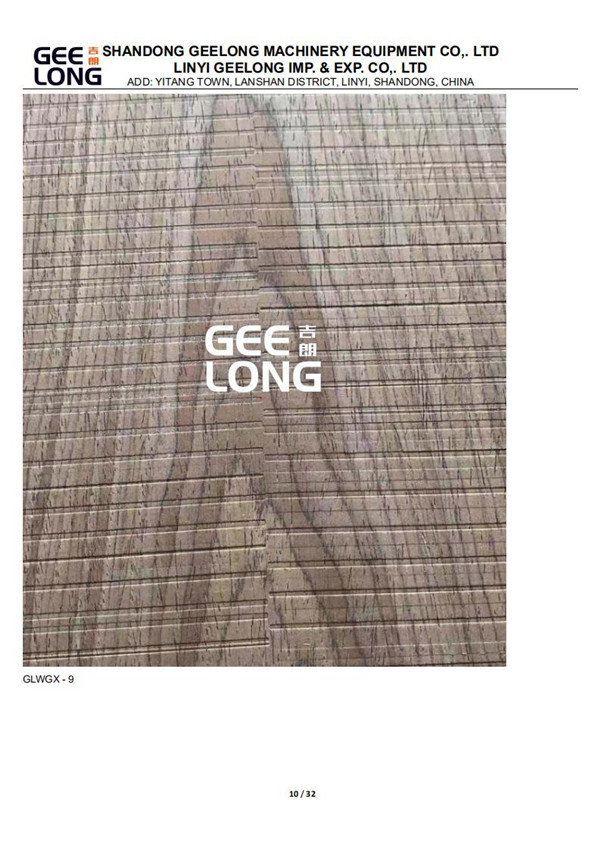

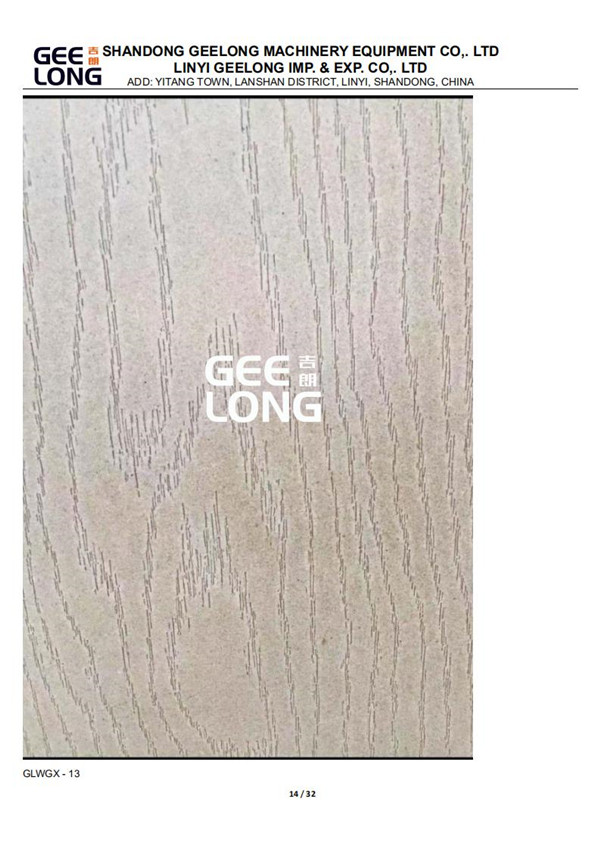

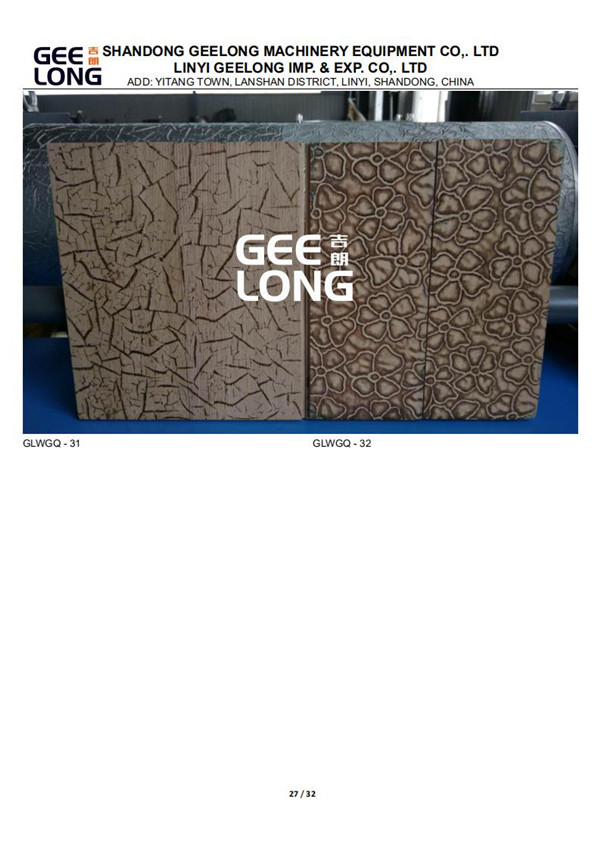

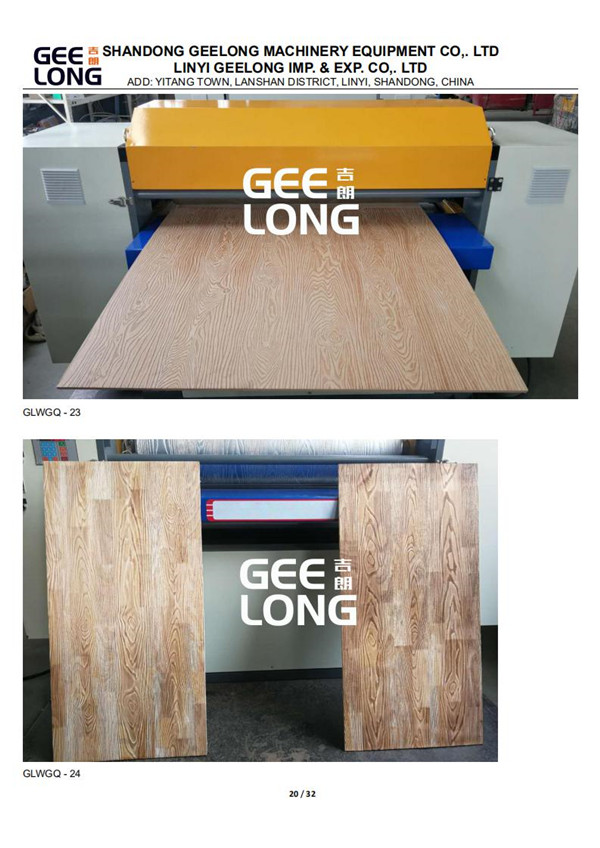

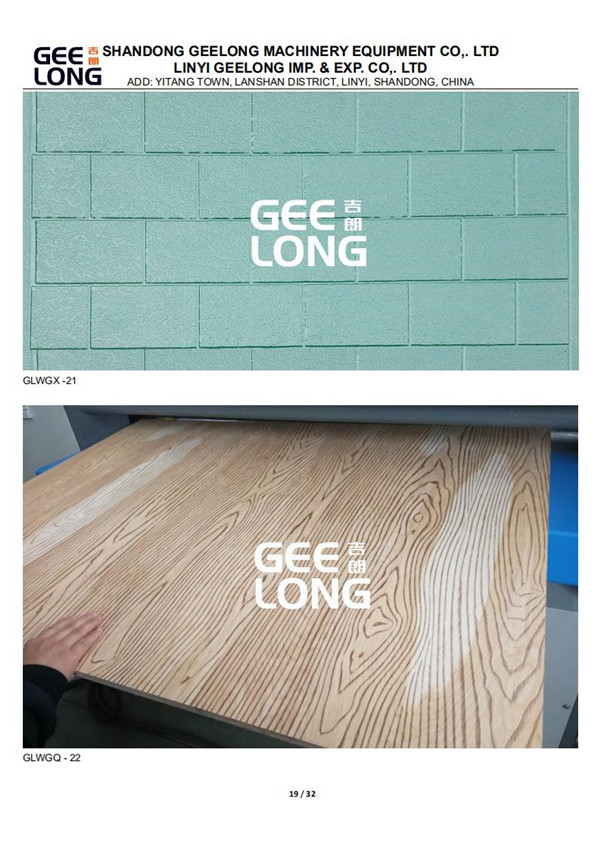

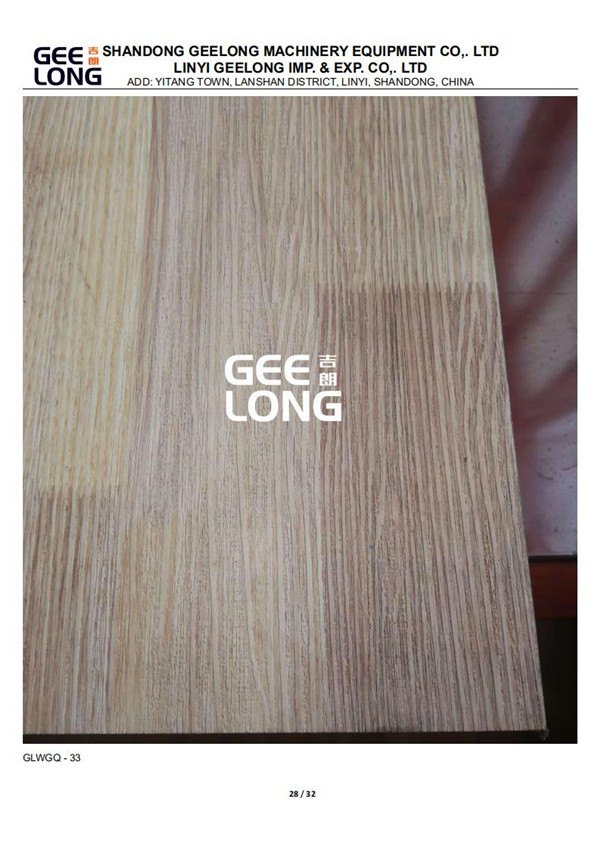

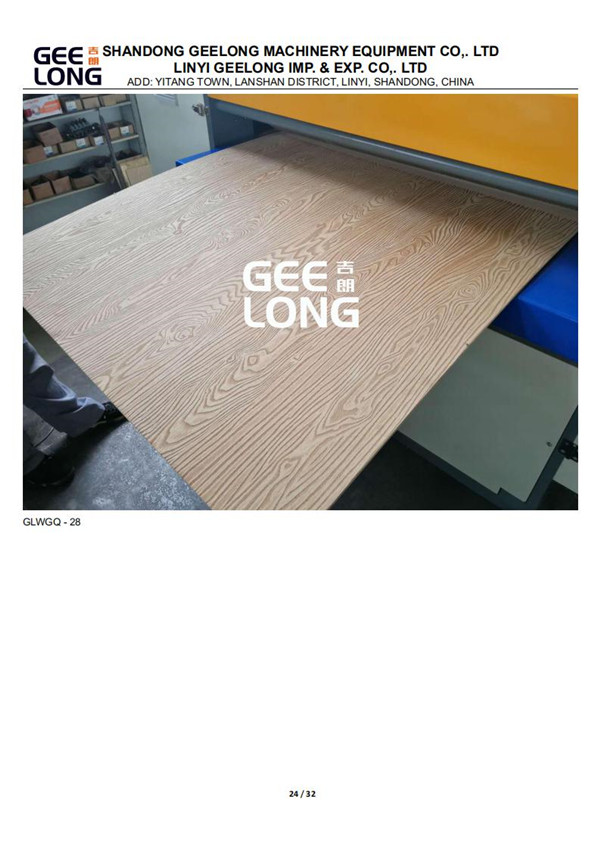

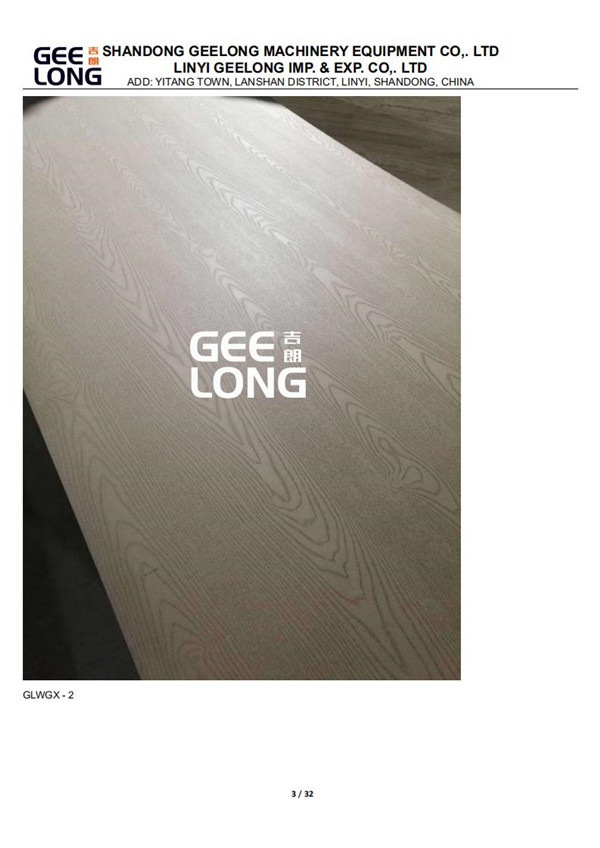

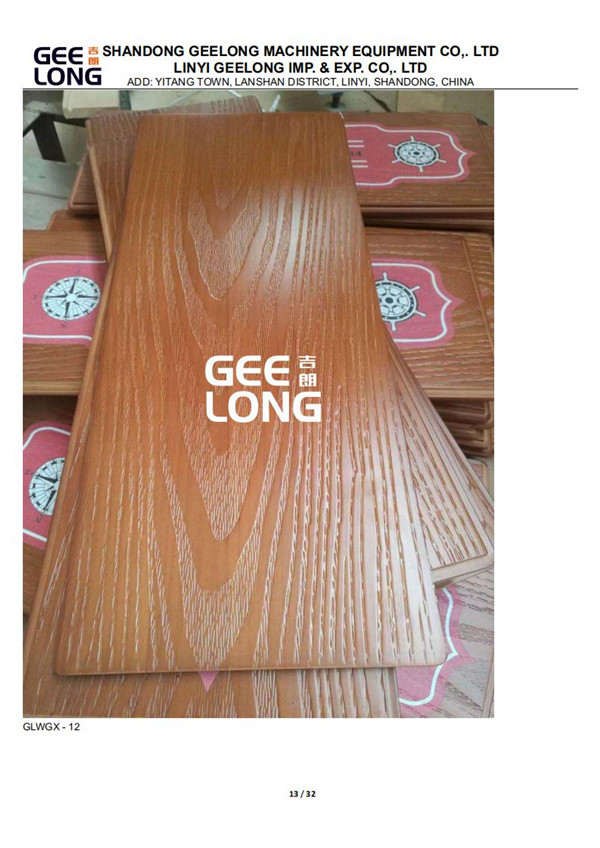

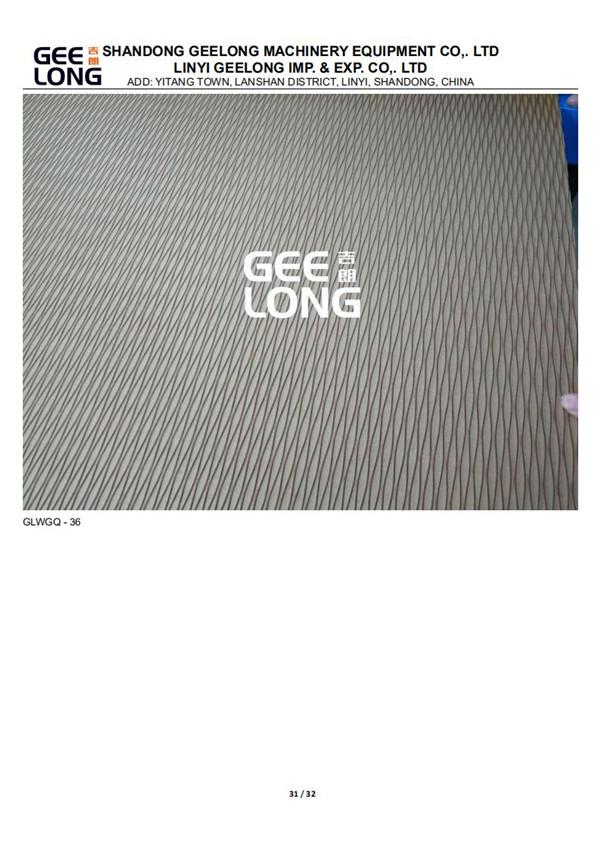

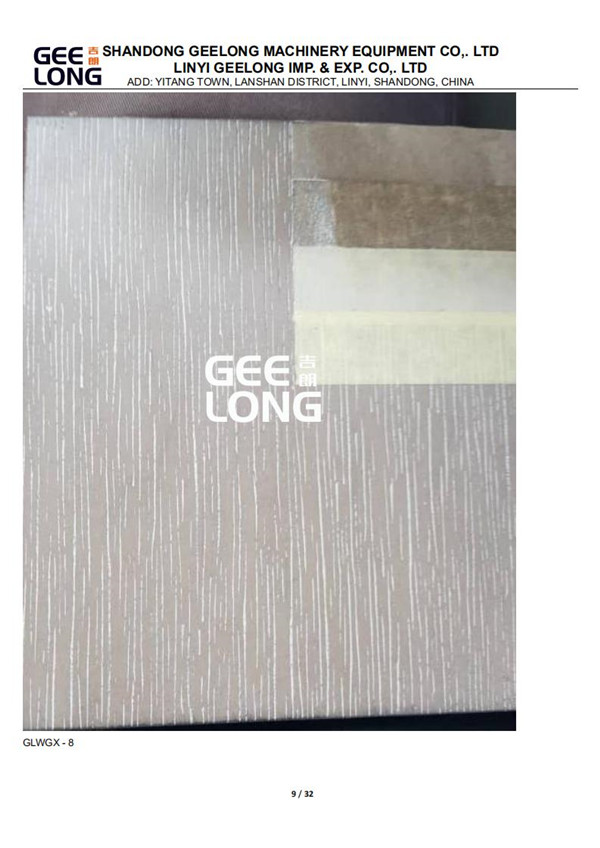

Patterns of our embossing machine:

[MDF embossing machine working video]
